1.1.6 Operation with a cluster system

By using a cluster configuration, you can create a highly reliable system that continues to operate even in the event of a system failure. As a result, the programs in Performance Management can continue operation and monitoring 24 hours a day.

The following figure shows an example of operation when a problem occurs on the monitored host in a cluster system.

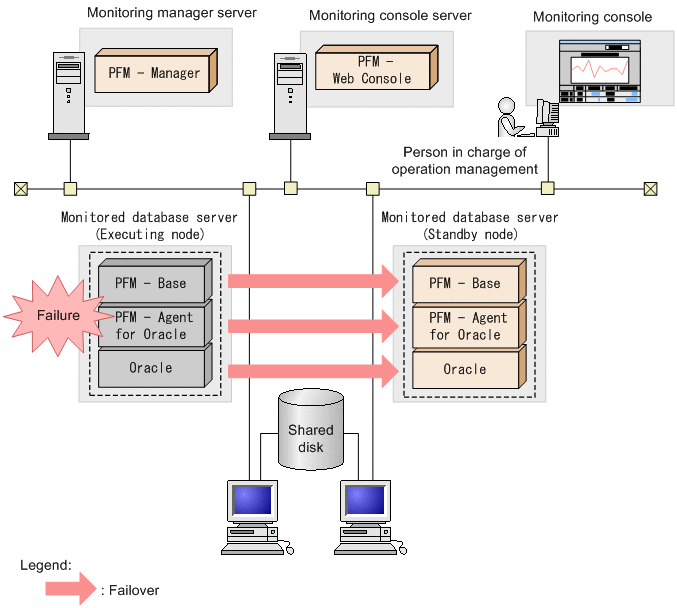

Figure 1‒1: Example of an PFM - Agent for Oracle configuration in an HA cluster system

Set up two environments with the same configuration, and define the environment for normal operation as an executing node and the other for failure operation as a standby node.

For more details about running the programs in Performance Management on a cluster system, see Part 2, 4. Operating PFM - Agent for Oracle in a Cluster System.
