3.1.2 Load-balancing cluster system

(1) Configuration of Oracle in a load-balancing cluster system (Oracle Real Application Clusters)

Oracle Real Application Clusters (or Oracle Parallel Server) is a system consisting of multiple nodes running Oracle that function as a single Oracle system that processes a single database. The data is stored on a shared disk and is shared by all nodes.

Distribution of workload to multiple nodes improves scalability and fault tolerance.

Although applications see the set of nodes as a single Oracle system, each node runs an Oracle system with a unique instance name. For example, a database might be run by Oracle instances SID=ora1 at node1 and SID=ora2 at node2. Applications use a global database name to access the database via Oracle Net Services.

For details about Oracle Real Application Clusters (or Oracle Parallel Server), see your Oracle documentation.

To Page Top

(2) Configuration of PFM - RM for Oracle if Oracle is in a load-balancing cluster system configuration

To operate PFM - RM for Oracle in a non-cluster system if Oracle is operating in a load-balancing cluster system, use a configuration such as that shown in the following figure.

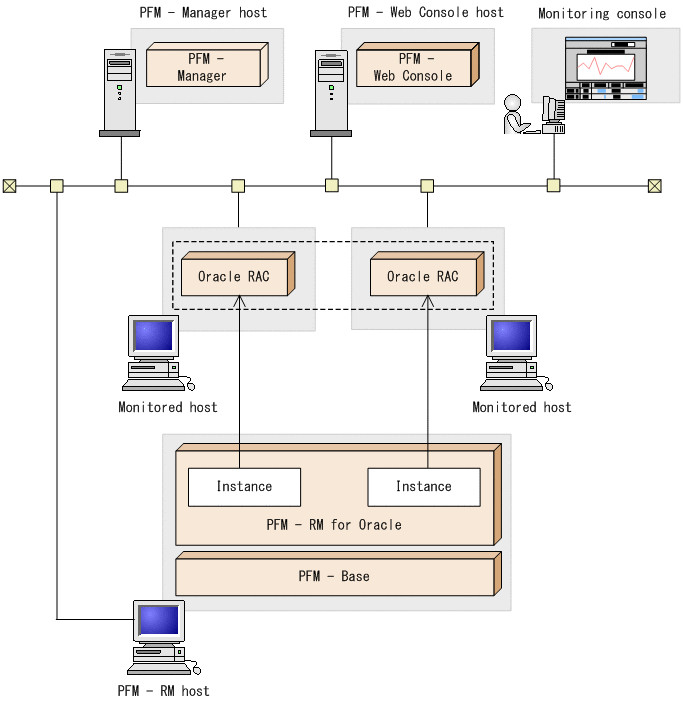

Figure 3‒3: Example configuration of PFM - RM for Oracle in a load-balancing cluster system

An Oracle system with a unique instance name is run on each node. PFM - RM for Oracle monitors the Oracle instance on each node.

As with a single-node system, set up PFM - RM for Oracle and configure it to monitor each node's Oracle Real Application Clusters instance.

Note:

If Oracle is operating in a load-balancing cluster system, you can operate PFM - RM for Oracle in a non-cluster system in the same way as in a system that consists of multiple stand-alone nodes. That is, you can operate PFM - RM for Oracle in the same way as in a typical non-cluster system. In this case, do not register PFM - RM for Oracle in the cluster software.

If Oracle is operating in a load-balancing cluster system, you can operate PFM - RM for Oracle in an HA cluster configuration. For information about how to operate PFM - RM for Oracle in an HA cluster configuration, see 3.1.1(2) PFM - RM for Oracle configuration in an HA cluster system. Note that when you do this, set up the PFM - RM for Oracle instance to monitor the Oracle Real Application Clusters instance on each node in the same way as in a non-cluster configuration.
