M. Communication in IPv4 and IPv6 Environments

Performance Management supports both IPv4 and IPv6 network environments. Therefore, you can run Performance Management even in a network environment where IPv4 and IPv6 coexist.

However, this applies only when the OS of the hosts on which PFM - RM for Platform and PFM - Manager are installed is Windows or Linux.

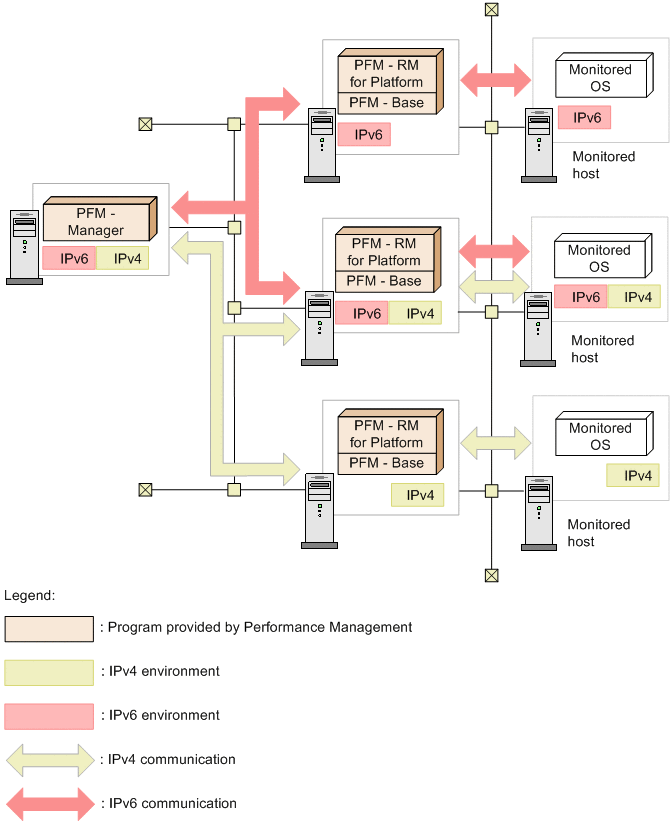

Figure M‒1: Scope to which communication in IPv4 and IPv6 environments applies

To enable communication in an IPv6 environment, you must execute the jpcconf ipv6 enable command. For details about this command, see the chapter that describes commands in the manual JP1/Performance Management Reference. For details about the conditions and timing for executing the jpcconf ipv6 enable command, see the chapter that describes an example of a network configuration that includes an IPv6 environment in the JP1/Performance Management Planning and Configuration Guide.
