4.1.4 Using an application definition template in the Agents tree
You can save the setting for collecting process operation status information (application definition) that was specified in the Agents tree window of PFM - Web Console as a template and use it in multiple machines.
This subsection explains how to create, delete, and load an application definition template.
- Organization of this subsection
(1) Creating an application definition template
-
From the browser of the monitoring console, log in to PFM - Web Console.
The Main window appears.
-
In the navigation frame of the Main window, click Agents.
The Agents tree window appears.
-
In the Agents tree of the navigation frame, select a remote agent (device-ID<product-name>).
A check mark is displayed for the selected remote agent.
-
In the method frame, select the Process Monitoring Settings method.

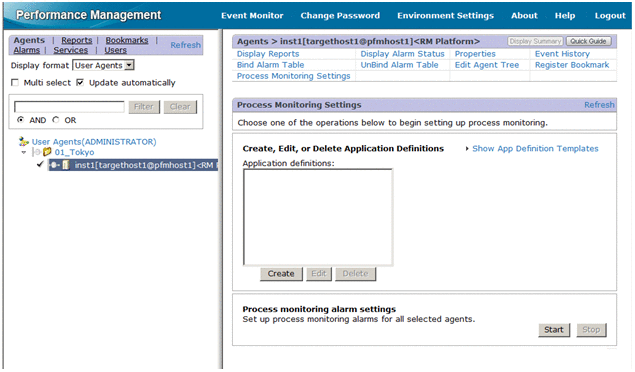

The Process Monitoring Settings window appears.
![[Figure]](GRAPHICS/ZU040030.GIF)
-
Select the Show App Definition Templates menu.

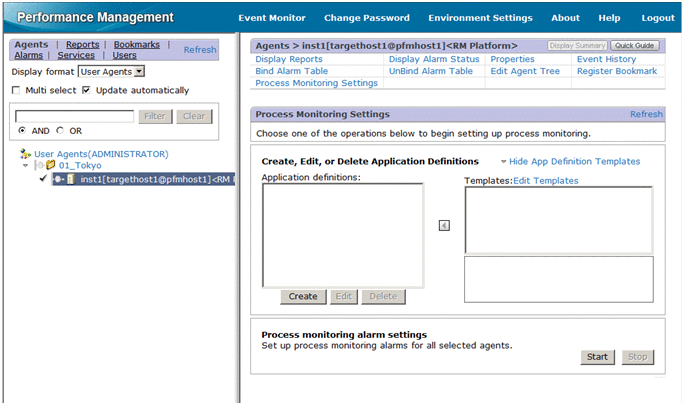

The Edit Templates menu appears.
![[Figure]](GRAPHICS/ZU040060.GIF)
-
Select the Edit Templates menu.

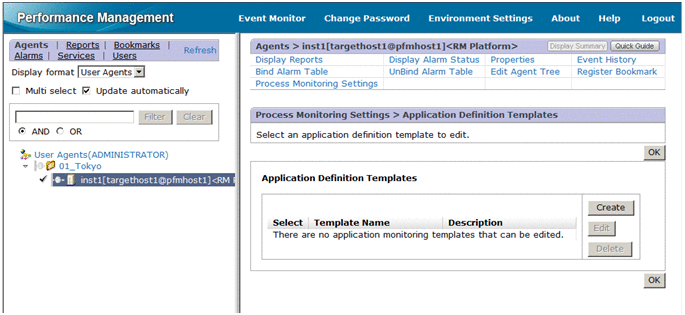

The Process Monitoring Settings > Application Definition Templates window appears.
![[Figure]](GRAPHICS/ZU040070.GIF)
-
To create a new template, click the Create button. To modify settings, select the template you want to modify from Application Definition Templates and click the Edit button.

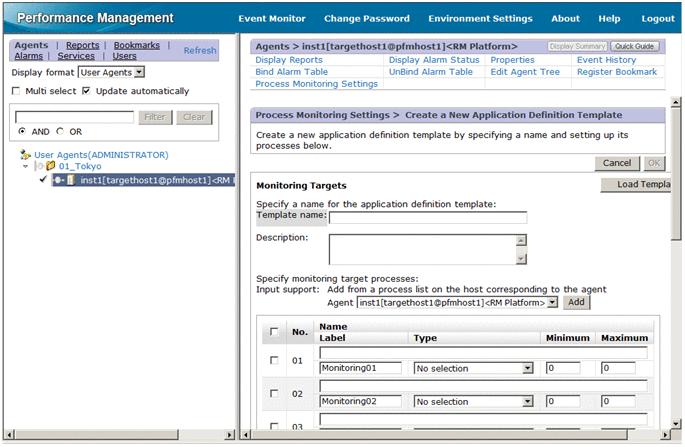

The Process Monitoring Settings > Create a New Application Definition Template window or the Process Monitoring Settings > Edit an Application Definition Template window appears.
![[Figure]](GRAPHICS/ZU040080.GIF)
-
Enter a template name in Template name.
-
Enter a template description in Description.
-
Specify detailed information for the application.
For details about the settings, see Table 4-1 Detailed application information that can be specified in 4.1.2(1) Creating an application.
-
Click the OK button.
An application definition template is created.
(2) Deleting an application definition template
-
From the browser of the monitoring console, log in to PFM - Web Console.
The Main window appears.
-
In the navigation frame of the Main window, click Agents.
The Agents tree window appears.
-
In the Agents tree of the navigation frame, select a remote agent (device-ID<product-name>).
A check mark is displayed for the selected remote agent.
-
In the method frame, select the Process Monitoring Settings method.
The Process Monitoring Settings window appears.
-
Select the Show App Definition Templates menu.
The Edit Templates menu appears.
-
Select the Edit Templates menu.
The Process Monitoring Settings > Application Definition Templates window appears.
-
From Application Definition Templates, select the template you want to delete and click the Delete button.
The Process Monitoring Settings > Delete an Application Definition Template window appears.
-
Click the OK button.
The application definition template is deleted.
(3) Loading an application definition template
-
From the browser of the monitoring console, log in to PFM - Web Console.
The Main window appears.
-
In the navigation frame of the Main window, click Agents.
The Agents tree window appears.
-
In the Agents tree of the navigation frame, select a remote agent (device-ID<product-name>).
A check mark is displayed for the selected remote agent.
-
In the method frame, select the Process Monitoring Settings method.
The Process Monitoring Settings window appears.
-
Click the Create button.
The Process Monitoring Settings > Create a New Application Definition window appears.
-
Click the Load Template button.

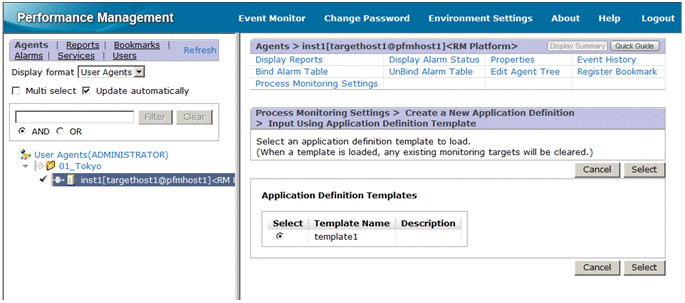

The Process Monitoring Settings > Create a New Application Definition > Input Using Application Definition Template window appears.
![[Figure]](GRAPHICS/ZU040090.GIF)
-
Select the template you want to load from Application Definition Templates and click the Select button.
The application definition template is loaded.
