3.2.3 Installation procedure for the UNIX edition

This subsection describes how to install PFM - RM for Platform in a UNIX environment.

Organization of this subsection

(1) Program installation sequence

This subsection describes the order in which PFM - RM for Platform and its prerequisite programs are to be installed.

When installing PFM - RM for Platform on the PFM - Manager host

Install PFM - Manager first, and then install PFM - RM for Platform.

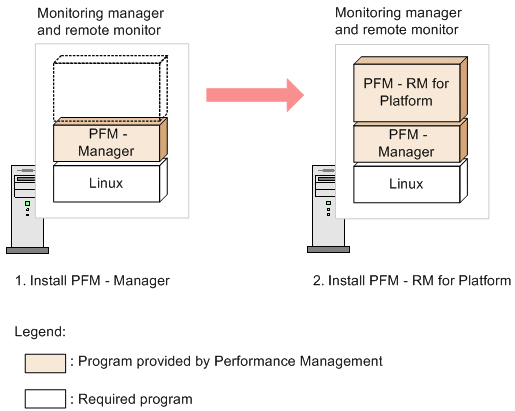

Figure 3‒13: Program installation sequence (when PFM - RM for Platform and PFM - Manager are on the same host (for UNIX))

[Figure]

When installing PFM - RM for Platform on a host other than the PFM - Manager host

Install PFM - Base first, and then install PFM - RM for Platform.

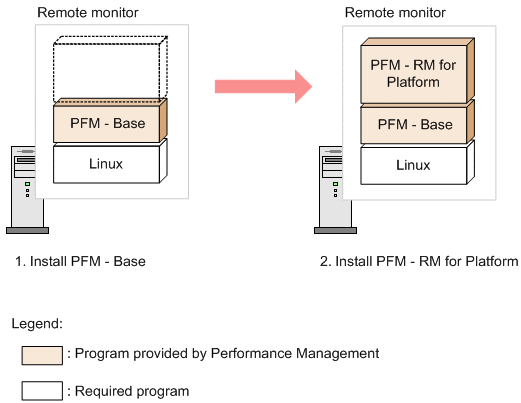

Figure 3‒14: Program installation sequence (when PFM - RM for Platform and PFM - Base are on the same host (for UNIX))

[Figure]

If you install multiple PFM - RMs on the same host, you can install the individual PFM - RMs in any order.

(2) Installation procedure

This subsection describes how to install PFM - RM for Platform.

There are two ways to install PFM - RM for Platform in a UNIX environment: by using the distribution media or by using JP1/Software Distribution for remote installation. For details about the method that uses JP1/Software Distribution, see the Job Management Partner 1/Software Distribution Manager, Job Management Partner 1/Software Distribution SubManager Description and Administrator's Guide (for UNIX systems), and Job Management Partner 1/Software Distribution Client Description and User's Guide (for UNIX systems).

Important

Depending on the machine environment, directory and file names might differ from those indicated in the manuals. Use the ls command to check the correct directory and file names in your environment. When you execute the command that starts Hitachi PP Installer, specify the directory and file names displayed by the ls command.

To install from the distribution media:

  1. At the host where the program is to be installed, log in as a superuser. Alternatively, use the su command to change the user to a superuser.

  2. Stop any Performance Management services running on the local host.

    You must stop all Performance Management services running on physical and logical hosts. For details about how to stop services, see the chapter that describes starting and stopping Performance Management in the JP1/Performance Management User's Guide.

  3. Insert the distribution media into the appropriate drive.

  4. Execute the mount command to mount the distribution media.

    The following example mounts the distribution media in the mount directory:

    /bin/mount -r -o mode=0544 device-special-file-name mount-directory
  5. Execute the following command to start the Hitachi Program Product Installer:

    mount-directory/X64LIN/SETUP mount-directory

    The Hitachi Program Product Installer starts and the initial window is displayed.

  6. In the initial window, enter l.

    A list of the programs that can be installed is displayed.

  7. Select PFM - RM for Platform, and then enter I.

    PFM - RM for Platform is installed. To select another program, move the cursor to the desired program, and then press the space key to select it.

  8. When installation is completed successfully, enter Q.

    The initial window of the Hitachi Program Product Installer is displayed again.
