1.2.5 Integrating monitoring and analysis of performance data for multiple monitored hosts
PFM - RM for Platform can not only monitor and analyze performance data for each monitored host, but it can also monitor and analyze the performance data for all monitored hosts in an integrated manner.
PFM - RM for Platform treats each monitored host as a remote agent; the integration of remote agents is called a group agent.

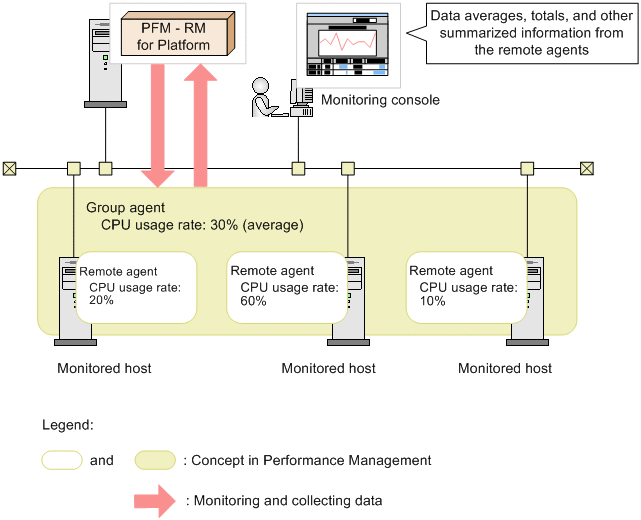

The following figure shows the concept of remote agents and group agents.
|
|
![[Figure]](GRAPHICS/ZU010020.GIF)
The information that is collected as a group agent includes performance data values for multiple monitored hosts, such as averages, totals, maximums, and minimums.
The remote agents that can be integrated as a group agent must belong to the same instance. Therefore, to integrate performance data, you must set the applicable monitored hosts in the same instance environment. For example, if you set instances as described below, you can visually analyze information for all the integrated monitored hosts:
-
Setting, in the same instance, multiple guest OSs running in a virtual environment
-
Setting, in the same instance, multiple servers that are operated for load distribution purposes
For details about remote agents and group agents, see the chapter that describes management of PFM - RM agents in the JP1/Performance Management Planning and Configuration Guide.
