Preface

This manual describes the functions of JP1/Performance Management - Remote Monitor for Platform and the records that are collected by it.

Organization of this preface

■ Intended readers

This manual describes JP1/Performance Management - Remote Monitor for Platform. The manual is intended for the following readers:

This manual assumes that the reader is knowledgeable about the operation of the monitored systems and is familiar with their operating systems.

For details about setting up and operating a system that uses JP1/Performance Management, also see the following manuals:

■ Organization of this manual

This manual is organized into the following parts.

This manual is applicable to both Windows and UNIX operating systems (OSs). Any information specific to one of the OSs only is indicated as such in the manual.

PART 1: Overview

PART 1 provides an overview of JP1/Performance Management - Remote Monitor for Platform.

PART 2: Setup and Operation

PART 2 explains how to install and set up JP1/Performance Management - Remote Monitor for Platform, as well as how to uninstall and unsetup JP1/Performance Management - Remote Monitor for Platform. It also explains how to back up and restore files, how to collect process operating status information, and how to operate JP1/Performance Management - Remote Monitor for Platform in a cluster system.

PART 3: Reference

PART 3 describes the monitoring templates, records, and messages for JP1/Performance Management - Remote Monitor for Platform.

PART 4: Troubleshooting

PART 4 describes the procedures for handling problems in JP1/Performance Management - Remote Monitor for Platform.

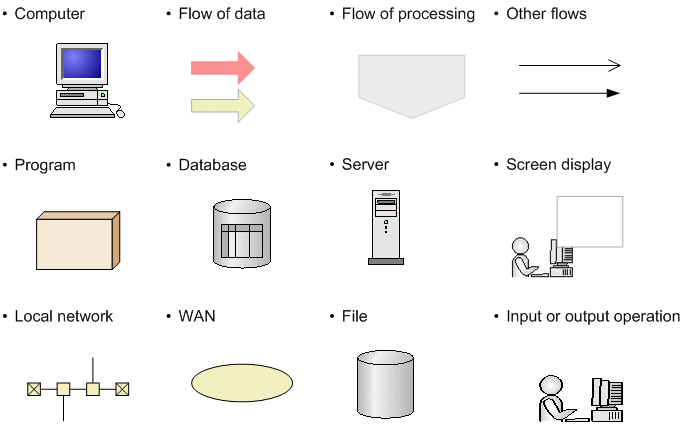

■ Conventions: Diagrams

This manual uses the following conventions in diagrams:

[Figure]

■ Conventions: Fonts and symbols

The following table explains the text formatting conventions used in this manual:

Text formatting

Convention

Bold

Bold characters indicate text in a window, other than the window title. Such text includes menus, menu options, buttons, radio box options, or explanatory labels. For example:

  • From the File menu, choose Open.

  • Click the Cancel button.

  • In the Enter name entry box, type your name.

Italic

Italic characters indicate a placeholder for some actual text to be provided by the user or system. For example:

  • Write the command as follows:

    copy source-file target-file

  • The following message appears:

    A file was not found. (file = file-name)

Italic characters are also used for emphasis. For example:

  • Do not delete the configuration file.

Monospace

Monospace characters indicate text that the user enters without change, or text (such as messages) output by the system. For example:

  • At the prompt, enter dir.

  • Use the send command to send mail.

  • The following message is displayed:

    The password is incorrect.

The following table explains the symbols used in this manual:

Symbol

Convention

|

In syntax explanations, a vertical bar separates multiple items, and has the meaning of OR. For example:

A|B|C means A, or B, or C.

{ }

In syntax explanations, curly brackets indicate that only one of the enclosed items is to be selected. For example:

{A|B|C} means only one of A, or B, or C.

[ ]

In syntax explanations, square brackets indicate that the enclosed item or items are optional. For example:

[A] means that you can specify A or nothing.

[B|C] means that you can specify B, or C, or nothing.

...

In coding, an ellipsis (...) indicates that one or more lines of coding have been omitted.

In syntax explanations, an ellipsis indicates that the immediately preceding item can be repeated as many times as necessary. For example:

A, B, B, ... means that, after you specify A, B, you can specify B as many times as necessary.

()

Parentheses indicate the range of items to which the vertical bar (|) or ellipsis (...) is applicable.

Conventions for mathematical expressions

This manual uses the following symbols in mathematical expressions:

Symbol

Meaning

×

Multiplication sign

÷

Division sign

■ Conventions: Version numbers

The version numbers of Hitachi program products are usually written as two sets of two digits each, separated by a hyphen. For example:

The version number might be shown on the spine of a manual as Ver. 2.00, but the same version number would be written in the program as 02-00.
