jpcconf port list

Organization of this page

Format
Function
Hosts that can execute the command
Execution permission
Installation directory
Arguments
Notes
Return values
Usage example

Format

jpcconf port list     -key service-key
                     [-lhost logical-host-name]
                     [-inst instance-name]

To Page Top

Function

The jpcconf port list command displays the port numbers that are used with Performance Management.

The following information is displayed:

Table 3‒24: Displayed information
Item	Description
`Component`	Service name. The displayed names indicate the following: Status Server: Status Server service Name Server: Name Server service Master Manager: Master Manager service Master Store: Master Store service Correlator: Correlator service Trap Generator: Trap Generator service View Server: View Server service Action Handler: Action Handler service Agent Store and RM Store: Agent Store and Remote Monitor Store service Agent Collector and RM Collector: Agent Collector and Remote Monitor Collector service View: View Server (between PFM - Web Console and View Server service)
`ServiceID`	Service ID
`Services`	Name of the service that uses the port number. If this information is undefined, `undef` is displayed.
`Port`	Port number. If this information is undefined, `undef` is displayed.
`Host Name`	Host name

To Page Top

Hosts that can execute the command

PFM - Manager
PFM - Agent
PFM - RM

To Page Top

Execution permission

In Windows:: User with Administrators permissions (executed from the administrator console when Windows UAC functionality is enabled)
In UNIX:: User with root user permissions

To Page Top

Installation directory

In Windows:: installation-folder\tools\
In UNIX:: /opt/jp1pc/tools/

To Page Top

Arguments

`-key` `service-key`

Specifies the service key of the service whose port numbers are to be the subject of this execution of the command. You can specify the following in service-key:

all: Specifies the port numbers of all programs of the Performance Management products.
Manager or mgr: Specifies the port numbers that are used with the PFM - Manager services (excluding the Status Server and Action Handler services), and between PFM - Web Console and the View Server service.
Product name or agtX: Specifies the port numbers that are used with the specified PFM - Agent or PFM - RM service, and the Name Server service.
AH or act: Specifies the port numbers that are used with the Action Handler service and the Name Server service.
View or view: Specifies the port numbers that are used between the PFM - Web Console and View Server services.
StatSvr or stat: Specifies the port numbers that are used with the Status Server service and the Name Server service.

Product name or agtX indicates the service key for the particular PFM - Agent or PFM - RM. For details about the service key of the PFM - Agent or PFM - RM service, see the naming rules described in the appendix of the JP1/Performance Management Planning and Configuration Guide.

`-lhost` `logical-host-name`

Specifies the host name of the logical host whose logical environment port numbers are to be displayed.

For logical-host-name, specify a string of 1 to 32 bytes, consisting of alphanumeric characters with no space characters and no periods (.).

For logical-host-name, you cannot specify localhost, an IP address, or a host name beginning with a hyphen (-).

`-inst` `instance-name`

Specifies the instance name of the instance whose port numbers are to be displayed. This option is applicable only to a PFM - Agent or PFM - RM that has an instance environment. For instance-name, specify a string of 1 to 32 bytes, consisting of alphanumeric characters.

You can use the jpcconf inst list command to check the instance names that can be specified.

To Page Top

Notes

Services do not need to be stopped when this command is executed.
To avoid confusion during operations, you should use consistent conventions for the correspondence between port numbers and service names over the entire Performance Management system.
If this command's execution is interrupted by pressing the Ctrl + C keys or by a signal, a predefined return value is not returned. Therefore, ignore the return value when the command was interrupted by the Ctrl + C keys or by a signal.
In an environment in which an overwrite installation from a version earlier than 11-00 was performed, the list of displayed port numbers includes the OpenView service (the service for NNM linkage).

To prevent the OpenView service line from being output to the definition file, see the description in the notes on migration (version 11-00 or later) in the appendix of the JP1/Performance Management Planning and Configuration Guide.
In UNIX, if you use this command to display the Status Server port number, or use the jpcconf port define command to set the Status Server port number to 22350, the following message is sometimes output.
```
jpcconf port list : KAVE05919-E The port number is not registered correctly in the services file.
```
If this happens, /etc/services might contain the following:
```
CodeMeter 22350/tcp
```
The above text is added to the services file on installation of the OS, regardless of whether the described product is installed. For this reason, confirm whether the applicable product is used, and if it is not used, comment out this text.

If the applicable product is used, or if the port number is registered for a different product, ensure that port number conflicts do not occur within the server.

For details about port numbers and change methods used by PFM - Manager, see sections that describe port number settngs and changing the port number settings in the manual JP1/Performance Management Planning and Configuration Guide.

To Page Top

Return values

`0`	The command terminated normally.
`1`	An argument specification is invalid.
`2`	The user does not have execution permission for the command.
`5`	The specified service key was not found.
`7`	The specified service key was not found at the logical host.
`10`	The command is being executed.
`100`	The Performance Management environment is invalid.
`102`	The specified instance was not found.
`106`	Port number has not been registered in the `services` file.
`200`	A memory shortage occurred.
`210`	A disk space shortage occurred.
`211`	File cannot be accessed.
`255`	An unexpected error occurred.

To Page Top

Usage example

This example displays the information about the port numbers for all services of Performance Management programs:

jpcconf port list -key all

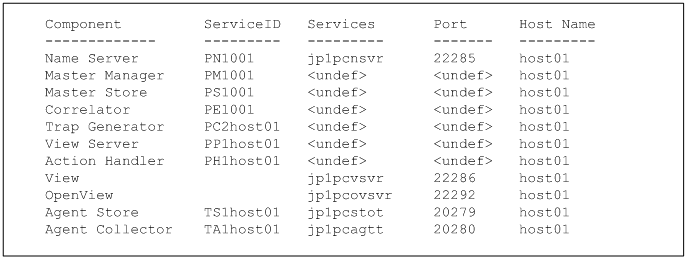

The following shows an example of the output:

[Figure]
