1.7.1 Transitions from the Alarms window

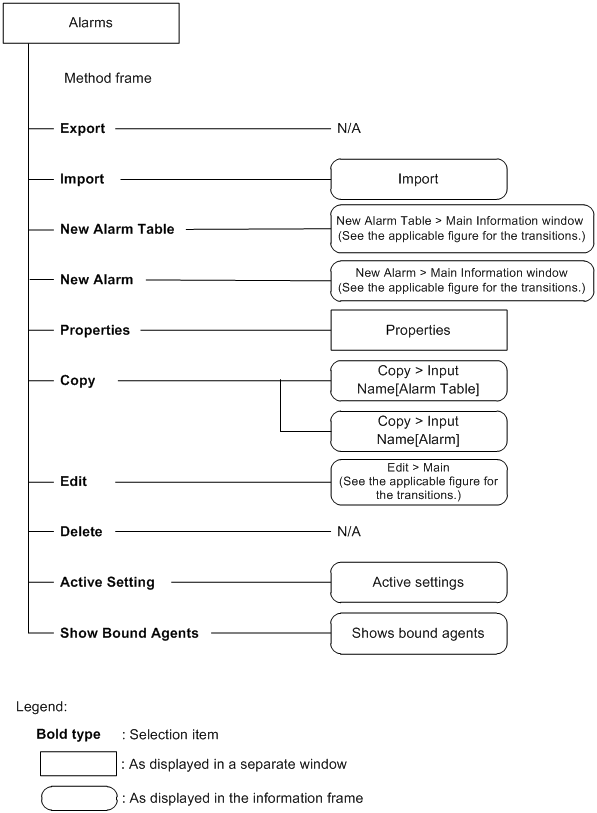

The following shows the window transitions from the Alarms window:

Figure 1‒108: Window transitions from the Alarms window

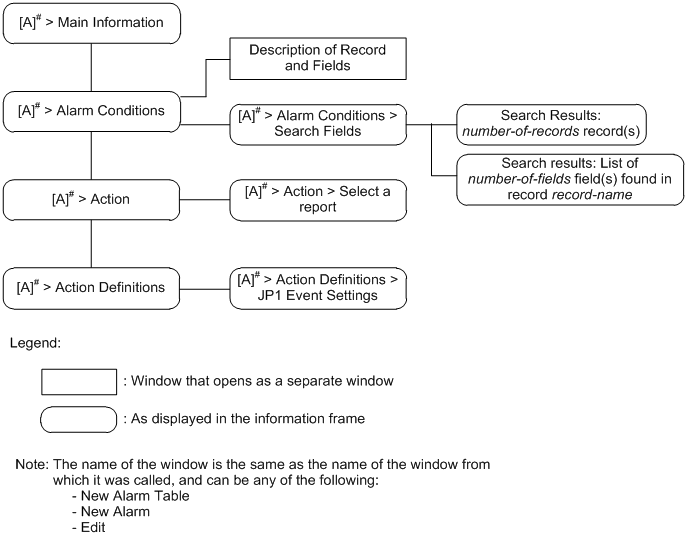

The following shows the transitions of the windows for creating a new alarm table, for creating a new alarm, and for editing an existing alarm transition in wizard format. The following figure shows the transitions from the New Alarm Table > Main Information window and the New Alarm > Main Information window and Edit > Main Information window.

Figure 1‒109: Window transitions for creating a new alarm table and for creating a new alarm or editing an existing alarm
