16.3.4 When a problem occurs within the status management function
This section gives details about checking the service status when a problem occurs within the status management function.
- Organization of this subsection

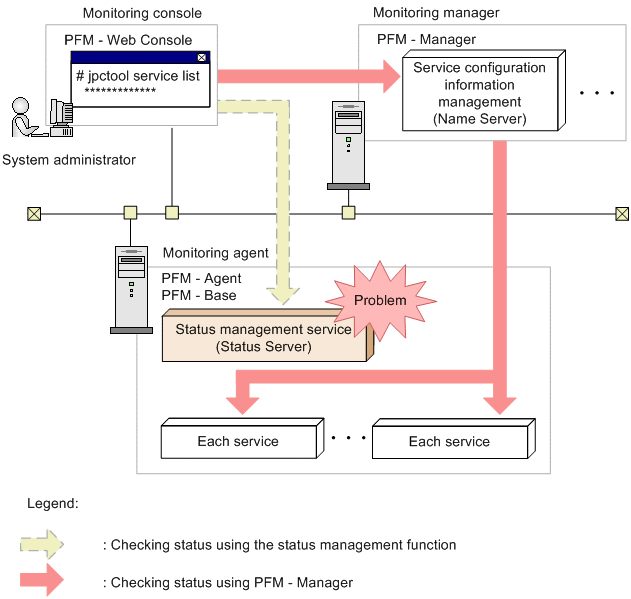

(1) When the Status Server service stops abnormally
When the Status Server service is stopped, the KAVE00203-W message is output to the common message log. In this case, the detailed service status cannot be checked, but the service status can be checked with the same method as when the status management function is disabled. The service status cannot be checked, however, when PFM - Manager is not running.
|
|
![[Figure]](GRAPHICS/ZU119120.GIF)
(2) When a service other than the Status Server service stops abnormally
If a service other than the Status Server service stops abnormally, the status file contents might not be properly updated. In this case, the status management function determines the service status based on the internal file generated by each service. As a result, the service status can be checked in the same manner as when the status management function is enabled.
