16.3.2 How to check the service status

The service status information that can be checked by the jpctool service list command differs depending on whether the status management function is enabled or disabled. The following subsections indicate the different situations in which service status information can be checked.

Organization of this subsection

(1) When the status management function is enabled
(2) When the status management function is disabled

(1) When the status management function is enabled

If the status management function is enabled, the jpctool service list command can be used to check detailed status information while a service is running or stopped.

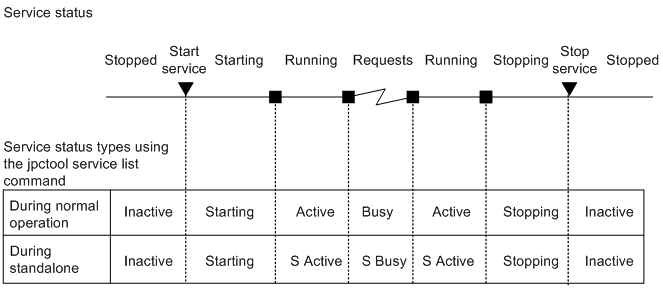

Figure 16‒9: Status information if the status management function is enabled

The following figures show an example configuration when the status management function is enabled in PFM - Manager and PFM - Agent or PFM - RM and an example of output of the jpctool service list command.

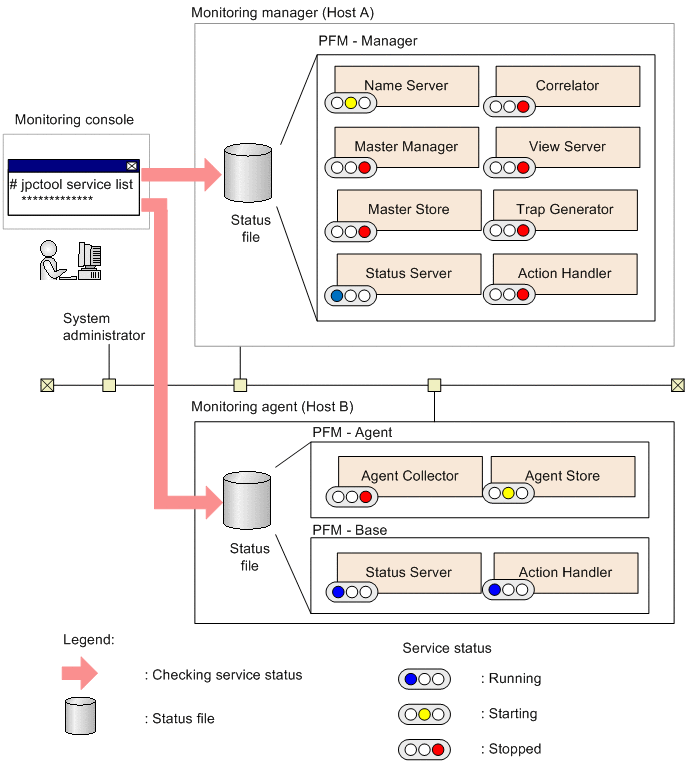

Figure 16‒10: Example of system configuration if the status management function is enabled

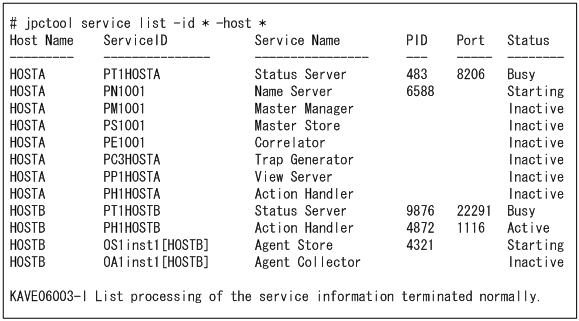

Figure 16‒11: Example of output of the jpctool service list command

To Page Top

(2) When the status management function is disabled

If the host has a version installed that does not support the status management function or if the function is disabled on the host, when the jpctool service list command is executed, a message is displayed explaining that the status management function is not supported. When this happens, the following status information is displayed. The service status cannot be checked, however, if PFM - Manager is not running.

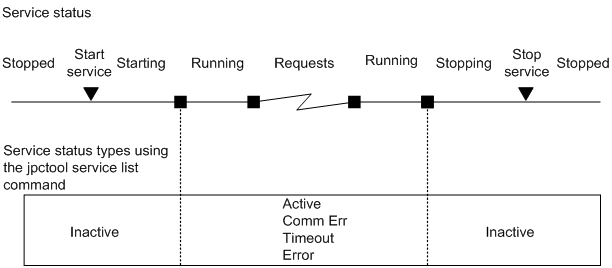

Figure 16‒12: Status information if the status management function is disabled
