15.2 Prerequisites for linking with JP1/SS
The following prerequisite conditions must be satisfied to link Performance Management with JP1/SS:
-
The PFM - Manager host must have JP1/Base installed in order to log on to Performance Management as a JP1 user. Use JP1/Base to manage users.
-
JP1 authentication mode must be used.
-
If the OS of a monitored host is UNIX, the actual host name is used as the monitoring host name in Performance Management. The result of the uname -n command must match the result of the hostname command. If it does not, take either of the following actions:
-
Change the method for acquiring the host name to hostname.
-
Configure the environment for monitored hosts so that the hostname command and uname -n command produce the same output.
-
-
The name of the event server that issues a JP1 event must match the name of the monitoring host in Performance Management. Names are case sensitive.
-
When a JP1 event is issued, Agent must be monitoring the host on which the problem occurred.
-
To link with JP1/SS, the following product versions are required.
No.
Product name
Version
1
JP1/Service Support
JP1/SS
11-10 or later
2
JP1/Integrated Management - Manager
JP1/IM
09-00 or later
JP1/Integrated Management 2 - Manager
3
JP1/Base
JP1/Base
09-00 or later#
4
JP1/Performance Management
PFM - Web Console
11-10 or later#
- #
-
If you are running multiple Performance Management systems, the products in all the Performance Management systems must have these versions or later. If an earlier-version product is included, reports might not be displayed because of unsuccessful connection with the PFM -Web Console instance for which reports are to be displayed.

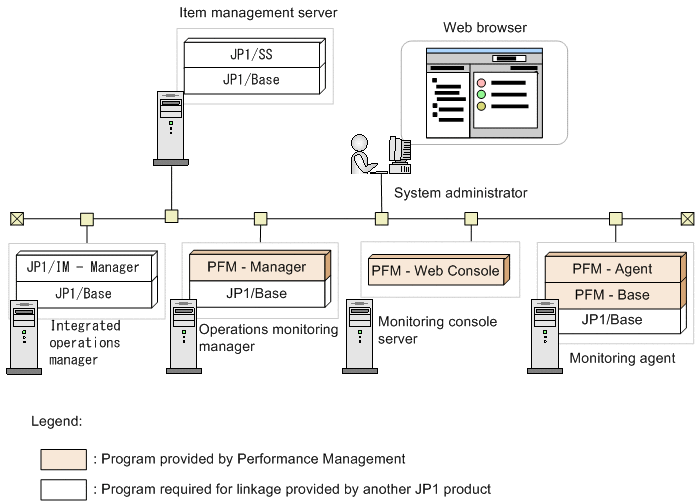

The following figure shows the installation configuration.
|
