14.2 Prerequisites for linking with JP1/AJS3

The following prerequisite conditions must be satisfied to link Performance Management with JP1/AJS:

The PFM - Manager host must have JP1/Base installed in order to log on to Performance Management as a JP1 user. Use JP1/Base to manage users.
JP1 authentication mode must be used.
The environment must allow you to establish a connection with PFM - Web Console from the host by which you are logged in to JP1/AJS3 - Web Console.
PFM - Agent or PFM - RM must be monitoring the execution agents in the JP1/AJS3 system.

To display an OS performance report for an execution agent, PFM - Agent for Platform or PFM - RM for Platform must be monitoring the agent.
If the actual host name is used as the monitoring host name, and the result of the uname -n command differs from the result of the hostname command, take either of the following actions:
- Change the method for acquiring the host name to hostname.
- Configure the environment for monitored hosts so that the uname -n command and hostname command provide the same execution result.
The name of the JP1/AJS3 execution host must match the monitoring host name in Performance Management. Names are case sensitive.
If JP1/AJS3 - Manager and JP1/AJS3 - Agent run on a logical host, the name of that logical host must match the monitoring host name of PFM - Agent or PFM - RM used for monitoring.

To link with JP1/AJS3, the following product versions are required.

No.	Product name		Version
1	JP1/Automatic Job Management System 3	JP1/AJS3 - Manager	11-00 or later
2		JP1/AJS3 - Agent	09-00 or later
3		JP1/AJS3 - Web Console	11-10 or later
4	JP1/Base	JP1/Base	11-00 or later^#
5	JP1/Performance Management	PFM - Web Console	11-10 or later^#

#: If you are running multiple Performance Management systems, the products in all the Performance Management systems must have these versions or later. If an earlier-version product is included, reports might not be displayed because of unsuccessful connection with the PFM - Web Console instance for which reports are to be displayed.

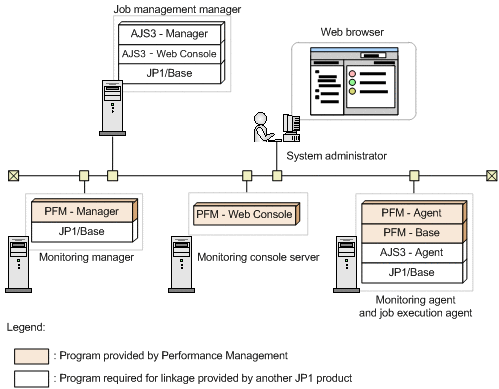

The following figure shows the installation configuration.

Figure 14‒2: Installation configuration for linking with JP1/AJS3
