13.2.1 Programs needed for JP1/SLM linkage

This subsection describes the programs needed to link Performance Management with JP1/SLM.

The following figure shows the required programs.

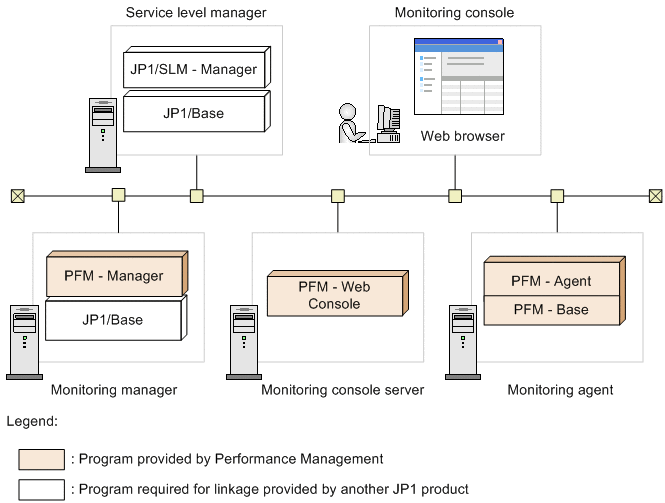

Figure 13‒2: Program configuration for linking with JP1/SLM

All programs must be version 10-00 or later.

PFM - Web Console version 09-00 or later will work, but the following operational restrictions apply to versions earlier than 10-00:
- Record IDs of records collected in the Service Properties window are not displayed in bold type.
- When you select an agent in JP1/SLM and then launch PFM - Web Console from the JP1/SLM window, that agent will not be highlighted automatically in the PFM - Web Console main window.
