10.6.3 Managing agents in an integrated cluster system

Only one agent with the logical host name is displayed in the window of PFM - Web Console when PFM - Agent or PFM - RM runs on a logical host in a cluster system. An agent using an executing node or standby node name is not displayed.

The agent that runs on the executing node is operated when you operate the agent displayed as the logical host name.

For example, when Oracle with a cluster configuration that runs in an environment having the same logical host name jp1-ha1 is monitored by PFM - Agent for Oracle that runs in the environment having the same logical host name jp1-ha1, the operations are as shown in the following figure. An agent that runs on the logical host environment is displayed using the logical host name. You are automatically connected to PFM - Agent for Oracle that runs on the executing node when you operate this agent.

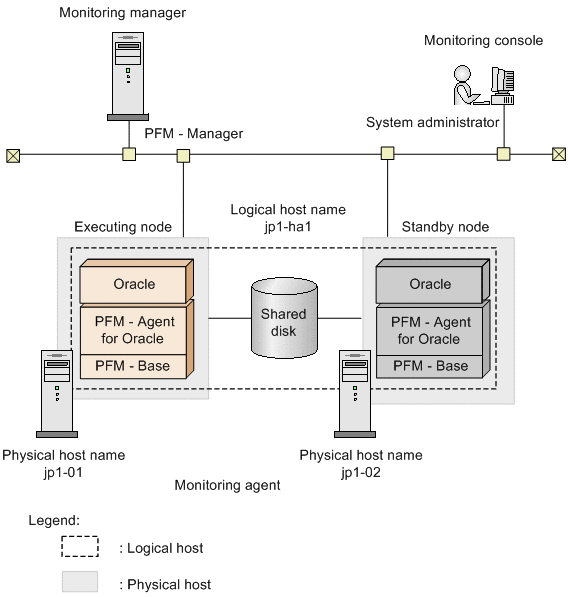

Figure 10‒30: Example of monitoring Oracle by PFM - Agent for Oracle in a cluster configuration

Tip

The agent with the physical host name is displayed in the window of PFM - Web Console when PFM - Agent or PFM - RM runs on a non-cluster system.
