10.5.1 Adding PFM - Agent or PFM - RM

(a) Process flow of additional PFM - Agent or PFM - RM information setup in PFM - Manager

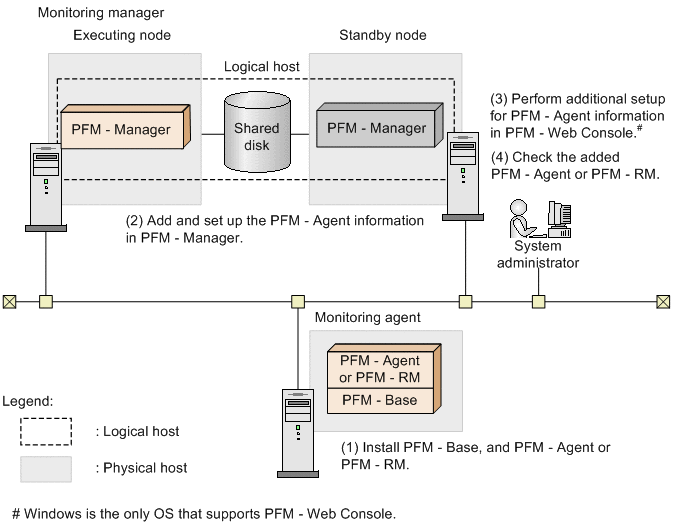

The process flow for performing an additional setup for the agent information of PFM - Agent or PFM - RM into PFM - Manager used on a logical host in a cluster system is described below.

If the conditions for registering agent information that are described in 10.4.2(3)(b) Performing an additional setup for PFM - Agent or PFM - RM information apply, you have to register PFM - Agent or PFM - RM in PFM - Manager.

Perform the addition and setup of the agent information on the standby node first. When the addition and setup are completed on the standby node, next perform setup on the executing node.

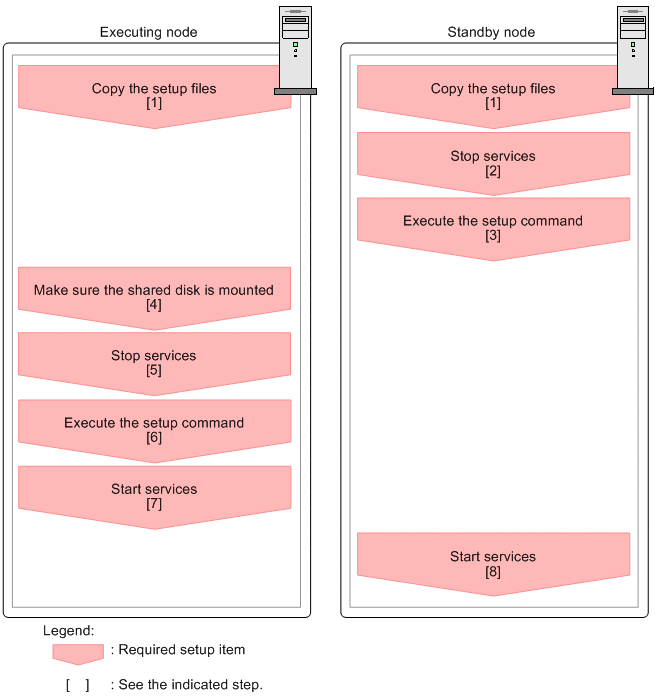

Figure 10‒27: Additional PFM - Agent or PFM - RM information setup in PFM - Manager

Notes:

• If you add another PFM - Agent or PFM - RM to the same host as PFM - Manager, an additional setup is not required.

• If you install a different version of PFM - Agent or PFM - RM with the same product ID on a different host, first set up the older version of PFM - Agent or PFM - RM, and then set up the newer version of PFM - Agent or PFM - RM.

(b) Additional PFM - Agent or PFM - RM information setup procedure in PFM - Manager

The image indicates a procedure used on the executing node, and the image indicates a procedure used on the standby node.

1. Copying the setup files

   Copy the PFM - Agent or PFM - RM setup files to the executing and standby nodes of PFM - Manager.

   For details, see the chapter describing installation and setup (in UNIX) in the JP1/Performance Management Planning and Configuration Guide.

2. Stopping services on the standby node

   Stop all physical host services on the standby node.

3. Executing the setup command

   Execute the jpcconf agent setup command on the standby node, and then perform additional setup for the new agent.

   Execute the following command:

   jpcconf agent setup -key xxxx

   xxxx indicates the service key of each PFM - Agent or PFM - RM. For details on service keys, see the appropriate PFM - Agent or PFM - RM manual.

   For example, execute the following command to set up PFM - Agent for Oracle:

   jpcconf agent setup -key Oracle

   In this example, the jpcconf agent setup command is executed in interactive mode. However, the command can also be executed in non-interactive mode. For details on the jpcconf agent setup command, see the chapter that describe commands in the manual JP1/Performance Management Reference.

4. Making sure the shared disk is mounted

   Make sure that the shared disk has been mounted on the executing node. Write the agent information to the shared disk with the additional setup procedure. Use the cluster software or the volume manager to check that the shared disk has been mounted.

5. Stopping services

   Stop all Performance Management programs and services in the physical and logical host environments on the standby node. Use the cluster software to stop the programs and services.

6. Executing setup commands

   Execute the jpcconf agent setup command on the executing node in the same manner as for the standby mode in order to add and set up the new agent.

   jpcconf agent setup -key xxxx

   xxxx indicates the service key of each PFM - Agent or PFM - RM. For details on service keys, see the appropriate PFM - Agent or PFM - RM manual.

   For example, execute the following command to set up PFM - Agent for Oracle:

   jpcconf agent setup -key Oracle

   In this example, the jpcconf agent setup command is executed in interactive mode. However, the command can also be executed in non-interactive mode. For details on the jpcconf agent setup command, see the chapters that describe commands in the manual JP1/Performance Management Reference.

7. Starting services

   Start the Performance Management programs and services that were stopped on the executing node.

8. Starting services on the standby node

   On the standby node, start the Performance Management programs and services that you stopped earlier.
