9.2.3 Using a command for backup and file copying for restoration (PFM - Web Console)

You can back up definition information for PFM - Web Console from the command line without stopping the service. By implementing this process as part of a batch process, you can operate a system in which backups are made automatically.

For PFM - Web Console, execute the jpcwbackup command to back up definition information and copy the files to restore the definition information.

Organization of this subsection

(1) Prerequisites
(2) Collective backup using the backup command
(3) Backup procedures
(4) Restoration procedure

(1) Prerequisites

You can use the backup command on hosts with PFM - Web Console installed.

To Page Top

(2) Collective backup using the backup command

The backup command allows you to collectively back up the definition information provided by PFM - Web Console without stopping the service. You can back up the information to a directory of your choice.

The backup command backs up the following information:

Definition information for the PFM - Web Console service
Bookmark information
Process monitoring template information

The following table describes the directory structure the backup command creates at the specified backup directory.

Table 9‒6: Directory structure at backup destination
Directory structure	Description
`backup-directory`	A directory chosen by the operator, specified in the command line.
`backup-directory\jp1pcwcbackup`	Backup destination for PFM - Web Console service definition information, authentication key files, and bookmark information.
`backup-directory\jp1pcwcbackup\Backup_info_wc.txt`	PFM - Web Console configuration information file
`backup-directory\jp1pcwcbackup\jp1pcWebCon`	Backup destination for PFM - Web Console service definition information
`backup-directory\jp1pcwcbackup\jp1pcWebCon\CPSB`	Backup destination for PFM - Web Console service definition information (Web server settings files and encrypted communication files)^#1
Service definition information in `backup-directory\jp1pcwcbackup\jp1pcWebCon\CPSB\`	PFM - Web Console service definition information (Web server settings files and encrypted communication files)
`backup-directory\jp1pcwcbackup\jp1pcWebCon\conf`	Backup destination for PFM - Web Console service definition information (PFM - Web Console settings files)
Service definition information in `backup-directory\jp1pcwcbackup\jp1pcWebCon\conf\`	PFM - Web Console service definition information (PFM - Web Console settings files)
`backup-directory\jp1pcwcbackup\jp1pcWebCon\cmdkey`	Backup destination for authentication key files
Authentication keys in `backup-directory\jp1pcwcbackup\jp1pcWebCon\cmdkey\`	Authentication key file (`JPCCMDKEY`)^#2
`backup-directory\jp1pcwcbackup\bookmarks`	Backup destination for bookmark information
Bookmark information in `backup-directory\jp1pcwcbackup\bookmarks\`	Bookmark definition files (across several folders and files)^#3
`backup-directory\jp1pcwcbackup\processMonitoringTemplates`	Backup destination for process monitoring template information
Process monitoring template information in `backup-directory\jp1pcwcbackup\processMonitoringTemplates\`	Process monitoring template files (across several folders and files)^#3
`backup-directory\info`	Storage location for maintenance information associated with backup process^#4

#1

The folder structure under CPSB is as follows:

- CPSB\httpsd\conf\

- CPSB\httpsd\conf\ssl\server\

- CPSB\CC\web\redirector\

- CPSB\CC\server\usrconf\ejb\PFMWebConsole\

- CPSB\CC\admin\usrconf\

#2

If the jpcmkkey command has never been executed, backup data might not be acquired because there is no directory to back up.

#3

In the standby node of a cluster system or an environment where the PFM - Web Console has never started, backup data might not be acquired because there is no data to back up.

#4

The info directory and its contents are acquired as maintenance information for troubleshooting purposes.

In order to restore the data you backed up, the configuration of PFM - Web Console on the host must be the same as it was when the backup was taken.

The backup command outputs information about the PFM - Web Console configuration on the host to a file. You can check for consistency between the backup and restoration environments by viewing the contents of this file.

The following table provides an overview of PFM - Web Console configuration information file.

Table 9‒7: Overview of PFM - Web Console configuration information file
Item	Description
File name	`Backup_info_wc.txt`
Output file path	In Windows: `backup-directory\jp1pcwcbackup\Backup_info_wc.txt` In UNIX: `backup-directory/jp1pcwcbackup/Backup_info_wc.txt`
Contents	The date and time of the backup, and configuration information for PFM - Web Console on the host.

For details on the contents of the PFM - Web Console configuration information file (Backup_info_wc.txt), the format of each item, and the items you need to check, see Table 9-9 List of PFM - Web Console configuration items to be checked.

(a) Backup in a cluster environment

When you use a command to back up definition information in a cluster environment, the command is unable to access the logical host environment directory from the standby node. This means that some of the information that can be backed up from the executing host cannot be backed up from the standby host. The following table describes the differences between the executing and standby hosts in terms of the definition information that can be backed up.

Table 9‒8: Differences in definition information backed up on executing and standby hosts
Host in cluster system	Definition information that can be backed up by the backup command
	Physical host	Shared disk
	Service definition information	Bookmark information	Process monitoring template information
Executing host	Y	Y	Y
Standby host	Y	N	N

Legend:

Y: Can be backed up.

N: Cannot be backed up.

When you use the backup command on the standby node, the command does not collect definition information (bookmark information and process monitoring template information) from the shared disk. At this time, the message KAVJT6551-W is output notifying the operator that this part of the backup process has been skipped.

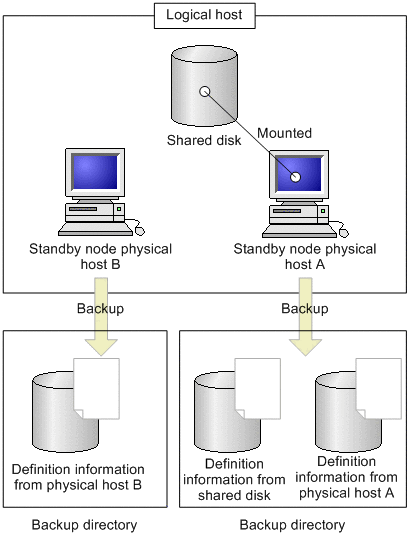

The following figure illustrates the backup process when the backup command is executed on the executing and standby hosts in a cluster system.

Figure 9‒1: Execution of backup command in a cluster system

To Page Top

(3) Backup procedures

(a) Backup procedure in a non-cluster system

Log on to the host where PFM - Web Console is installed.
Navigate to the directory installation-folder\tools where the backup command file is located.
Back up the definition information by executing the jpcwbackup -d directory command as a user with Administrators or Backup Operators permission.

(b) Backup procedure in a cluster system

In a cluster system, the backup command must be executed on the executing host and the standby host. If a failover occurs before the backup process is completed, execute the command again on both hosts after the failover.

Log on to the executing host where PFM - Web Console is installed.
Navigate to the directory installation-folder\tools where the backup command file is located.
Back up the definition information by executing the jpcwbackup -d directory command as a user with Administrators or Backup Operators permission.
Log on to the standby host where PFM - Web Console is installed.
Navigate to the directory installation-folder\tools where the backup command file is located.
Back up the definition information by executing the jpcwbackup -d directory command as a user with Administrators or Backup Operators permission.

To Page Top

(4) Restoration procedure

In order to restore data from a backup, the configuration of PFM - Web Console on the host must be the same as it was when the backup was taken.

For each item in the PFM - Web Console configuration information (Backup_info_wc.txt), the table below describes the contents of each item and its output format. It also describes each item, and whether you need to check the item for consistency between the backup and restoration environments.

Table 9‒9: List of PFM - Web Console configuration items to be checked
No.	Content	Output format	Description and checking	Must match
1	Date and time of command backup	`DateTime=date-and-time-of-command-execution`	The date and time when the backup command began executing, according to the time zone setting of the user who executed the command. The value of this item depends on the locale and operating system. Examples: In Windows with Japan as the locale `yyyy/mm/dd`Δ`HH:MM:SS` In Linux with Japan as the locale `yyyy-mm-dd`Δ`HH:MM:SS`	N
2	Host name of machine with PFM - Web Console installed	`Hostname=host-name`	The host name of the machine on which PFM - Web Console is installed. To be checked: Make sure that the host name matches that of the machine on which the backup was taken.	Y
3	Path of PFM - Web Console installation directory	`InstallDirectory=installation-directory-path`	The folder where PFM - Web Console is installed, as an absolute path. To be checked: Make sure that the installation directory matches the directory in which PFM - Web Console is installed in the restoration environment.	Y
4	Installation	`PFM - Web ConsolePP-name`Δ`:`Δ`VV-RR-SS`	The PP name of the installed instance of PFM - Web Console, followed by the PP version in the format `VV-RR-SS`. For versions with no value for `SS` (such as 10-00), `00` is output for `SS`. To be checked: Make sure that the program product model name and the VV, RR, and SS values of the version information match that of the restoration environment. For details about how to check the program product model name and the version information, see the appendix that describes how to check the version information in the JP1/Performance Management Planning and Configuration Guide.	Y
5	PFM - Web Console information	`bookmarkRepository=location-of-bookmark-definition-information`	The location of bookmark definition information, as the value of the `bookmarkRepository` parameter in the `config.xml` file. If the parameter is not specified in `config.xml`, `bookmarkRepository=` is output for this item. To be checked: Whether the path is accessible on the machine where PFM - Web Console is installed in the restoration environment.	N
6	Location of bookmark definition information	`processMonitoringTemplatesRepository=location-of-process-monitoring-template-information`	The location of process monitoring template information, as the value of the `processMonitoringTemplatesRepository` parameter in the `config.xml` file. If the parameter is not specified in `config.xml`, `processMonitoringTemplatesRepository=` is output for this item. To be checked: Whether the path is accessible on the machine where PFM - Web Console is installed in the restoration environment.	N

Legend:

Y: Needs to match the backup environment.

N: Does not need to match the backup environment.

The following table lists the source and destination paths for restored data.

Table 9‒10: Source and destination paths for data to be restored (in Windows)
Data to be restored	Backup file path of data to be restored^#	Restoration path
Data to be restored	Backup file path of data to be restored^#	Result of checking Backup_info_wc.txt	Path
Service definition information	`D:\backup\jp1pcwcbackup\jp1pcWebCon`	--	`installation-folder\`
Bookmark information	`D:\backup\jp1pcwcbackup\bookmarks`	`bookmarkRepository` has no value	`installation-folder\bookmarks`
Bookmark information	`D:\backup\jp1pcwcbackup\bookmarks`	All other situations	Path specified for `bookmarkRepository` in `Backup_info_wc.txt`
Process monitoring template information	`D:\backup\jp1pcwcbackup\processMonitoringTemplates`	`processMonitoringTemplatesRepository` has no value	`installation-folder\processMonitoringTemplates`
Process monitoring template information	`D:\backup\jp1pcwcbackup\processMonitoringTemplates`	All other situations	Path specified for `processMonitoringTemplatesRepository` in `Backup_info_wc.txt`

Legend:: --: Not applicable.
#: Assuming the backup destination folder is D:\backup.

Table 9‒11: Source and destination paths for data to be restored (in UNIX)
Data to be restored	Backup file path of data to be restored^#	Restoration path
Data to be restored	Backup file path of data to be restored^#	Result of checking Backup_info_wc.txt	Path
Service definition information	`/tmp/backup/jp1pcwcbackup/jp1pcWebCon`	--	`/opt/jp1pcwebcon`
Bookmark information	`/tmp/backup/jp1pcwcbackup/bookmarks`	`bookmarkRepository` has no value	`/opt/jp1pcwebcon/bookmarks`
Bookmark information	`/tmp/backup/jp1pcwcbackup/bookmarks`	All other situations	Path specified for `bookmarkRepository` in `Backup_info_wc.txt`
Process monitoring template information	`/tmp/backup/jp1pcwcbackup/processMonitoringTemplates`	`processMonitoringTemplatesRepository` has no value	`/opt/jp1pcwebcon/processMonitoringTemplates`
Process monitoring template information	`/tmp/backup/jp1pcwcbackup/processMonitoringTemplates`	All other situations	Path specified for `processMonitoringTemplatesRepository` in `Backup_info_wc.txt`

Legend:: --: Not applicable.
#: Assuming the backup directory is /tmp/backup.

(a) Restoration procedure in a non-cluster environment

Check the PFM - Web Console configuration.

Make sure that the items in the PFM - Web Console configuration information file (Backup_info_wc.txt) in the backup data are the same as in the restoration environment.

When checking bookmark definition information and process monitoring template definition information:

When there is no setting for bookmarkRepository or processMonitoringTemplatesRepository in the PFM - Web Console configuration information file (Backup_info_wc.txt), the default directory is used.
If you are using encrypted communication, use the jpcwtool https output certtext command to check the expiration date of the server certificate.

Check that the server certificate for the backup data has not expired.

If the server certificate has expired, contact the certificate authority that issued the server certificate to find out how to renew the server certificate, and then prepare the server certificate in the restoration-target environment. For details, see the procedure that describes how to prepare a certificate (server certificate or self-signed certificate) in the section that describes what to do when a certificate (server certificate or self-signed certificate) has expired in the JP1/Performance Management Planning and Configuration Guide.
Log on to the PFM - Web Console host where you want to restore the data.
Stop the PFM - Web Console service on the host by executing the jpcwstop command.
Check the location of the backup files.

Make sure that backup files are available that were created on the same host.
Delete or move the data at the location where the backup data is to be restored.

When restoring service definition information:

Because the restoration process will overwrite the files listed below, keep a copy of the data if needed:

• Initialization file (installation-folder\conf\config.xml)

• All files in the encrypted communication file storage folder

When restoring bookmark definition information or process monitoring template definition information:

After the restoration process, the storage directories for bookmark information and process monitoring template information are those specified as the values of the bookmarkRepository and processMonitoringTemplatesRepository parameters in the PFM - Web Console configuration information file (Backup_info_wc.txt). These directories must be empty when you restore the data. Delete any data in these directories, or move the data to another location.
Restore the definition information.

Check the source and destination paths of the data being restored, and copy all of the files at the backup file path to the restoration destination, maintaining the directory structure.
Make sure that the settings in the initialization file (installation-folder\conf\config.xml) match the system environment at the restoration destination.
If you have renewed the server certificate in step 2, store the file in the restoration-target environment and specify the settings needed to use encrypted communication.

For details, see the subsections beginning with the procedure that describes where to store encrypted communication files in the section that describes what to do when a certificate (server certificate or self-signed certificate) has expired in the JP1/Performance Management Planning and Configuration Guide.
Start the PFM - Web Console service on the host by executing the jpcwstart command.

(b) Restoration procedure in a cluster environment

Restoration procedure on the executing host:

Check the PFM - Web Console configuration.

Make sure that the items in the PFM - Web Console configuration information file (Backup_info_wc.txt) in the backup data are the same as in the restoration environment.
If you are using encrypted communication, use the jpcwtool https output certtext command to check the expiration date of the server certificate.

Check that the server certificate for the backup data has not been expired.

If the server certificate has expired, contact the certificate authority that issued the server certificate to find out how to renew the server certificate, and then prepare the server certificate in the restoration-target environment. For details, see the procedure that describes how to prepare a certificate (server certificate or self-signed certificate) in the section that describes what to do when a certificate (server certificate or self-signed certificate) has expired in the JP1/Performance Management Planning and Configuration Guide.
Log on to the executing host where you want to restore the data.
Stop the PFM - Web Console service on the host by using the cluster software.
Check the location of the backup files.

When restoring service definition information:

Make sure that backup files are available that were created on the same host.

When restoring bookmark definition information or process monitoring template definition information:

Make sure that backup files are available that were created on the executing host.

Backup data taken while a host is operating as the standby host after a failover does not include bookmark definition information or process monitoring template information. This information is only collected from hosts operating as the executing host. For this reason, you must use backup data that was collected from an executing host (the physical host has no bearing).
Delete or move the data at the location where the data is to be restored.

When restoring service definition information:

Because the restoration process will overwrite the files listed below, keep a copy of the data if needed:

• Initialization file (installation-folder\conf\config.xml)

• All files in the encrypted communication file storage folder

When restoring bookmark definition information or process monitoring template definition information:

Delete or move the bookmark information and process monitoring template information present at the restore destination.

After the restoration process, the storage directories for bookmark information and process monitoring template information are those specified as the values of the bookmarkRepository and processMonitoringTemplatesRepository parameters in the PFM - Web Console configuration information file (Backup_info_wc.txt). These directories must be empty when you restore the data. Delete any data in these directories, or move the data to another location.
Restore the definition information.

Check the source and destination paths of the data being restored, and copy all of the files at the backup file path to the restoration destination, maintaining the directory structure.
Make sure that the settings in the initialization file (installation-folder\conf\config.xml) match the system environment at the restoration destination.
If you have renewed the server certificate in step 2, store the file in the restoration-target environment and specify the settings needed to use encrypted communication.

For details, see the subsections beginning with the procedure that describes where to store encrypted communication files in the section that describes what to do when a certificate (server certificate or self-signed certificate) has expired in the JP1/Performance Management Planning and Configuration Guide.
Start the PFM - Web Console service on the host using the cluster software.

Restoration procedure on the standby host:

Check the PFM - Web Console configuration.

Make sure that the items in the PFM - Web Console configuration information file (Backup_info_wc.txt) in the backup data are the same as in the restoration environment.
If you are using encrypted communication, use the jpcwtool https output certtext command to check the expiration date of the server certificate.

Check that the server certificate for the backup data has not been expired.

If the server certificate has expired, contact the certificate authority that issued the server certificate to find out how to renew the server certificate, and then prepare the server certificate in the restoration-target environment. For details, see the procedure that describes how to prepare a certificate (server certificate or self-signed certificate) in the section that describes what to do when a certificate (server certificate or self-signed certificate) has expired in the JP1/Performance Management Planning and Configuration Guide.
Log on to the standby host where you want to restore the data.
Stop the PFM - Web Console service on the host by using the cluster software.
Check the location of the backup files.

When restoring service definition information:

Make sure that backup files are available that were created on the same host.

Note:

Because the standby host cannot access the shared disk, you cannot restore bookmark definition information and process monitoring template information on a standby host.
Delete or move the data at the location where the data is to be restored.

When restoring service definition information:

Because the restoration process will overwrite the files listed below, keep a copy of the data if needed:

• Initialization file (installation-folder\conf\config.xml)

• All files in the encrypted communication file storage folder
Restore the definition information.

Check the source and destination paths of the data being restored, and copy all of the files at the backup file path to the restoration destination, maintaining the directory structure.
Make sure that the settings in the initialization file (installation-folder\conf\config.xml) match the system environment at the restoration destination.
If you have renewed the server certificate in step 2, store the file in the restoration-target environment and specify the settings needed to use encrypted communication.

For details, see the subsections beginning with the procedure that describes where to store encrypted communication files in the section that describes what to do when a certificate (server certificate or self-signed certificate) has expired in the JP1/Performance Management Planning and Configuration Guide.
Start the PFM - Web Console service on the host using the cluster software.

To Page Top
