8.2.2 Range of monitoring suspended or resumed by the agent

If you suspend monitoring by the agent, monitoring that has been performed by the specified monitoring agents is suspended.

If you specify PFM - RM, monitoring that has been performed by the remote agent is also suspended. Note that, if you specify only the remote agent, monitoring for the monitoring-source Remote Monitor is not suspended.

Additionally, when you resume monitoring by the agent, the same range as that when you suspend monitoring is resumed.

The range of suspended monitoring when Remote Monitor 1 on HostA is specified is explained by using the following environment as an example.

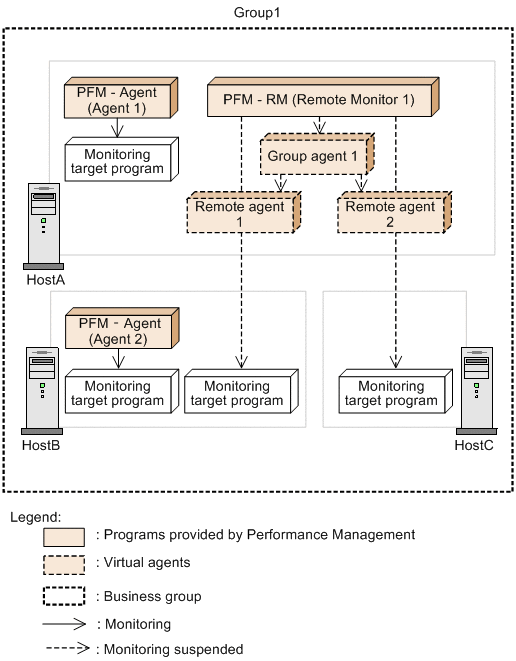

Figure 8‒2: Example of an environment in which monitoring is suspended by the agent

At this time, suspended monitoring is as follows:

• Alarm evaluation and storage of operating information

  Alarm evaluation and storage of operating information are suspended in Remote Monitor 1, Group agent 1, Remote agent 1, and Remote agent 2.

• When the monitoring level of the health check provides service-level monitoring of operating statuses

  Health checks for Remote Monitor 1, Remote agent 1, and Remote agent 2 are suspended.
