2.2 Installation prerequisites

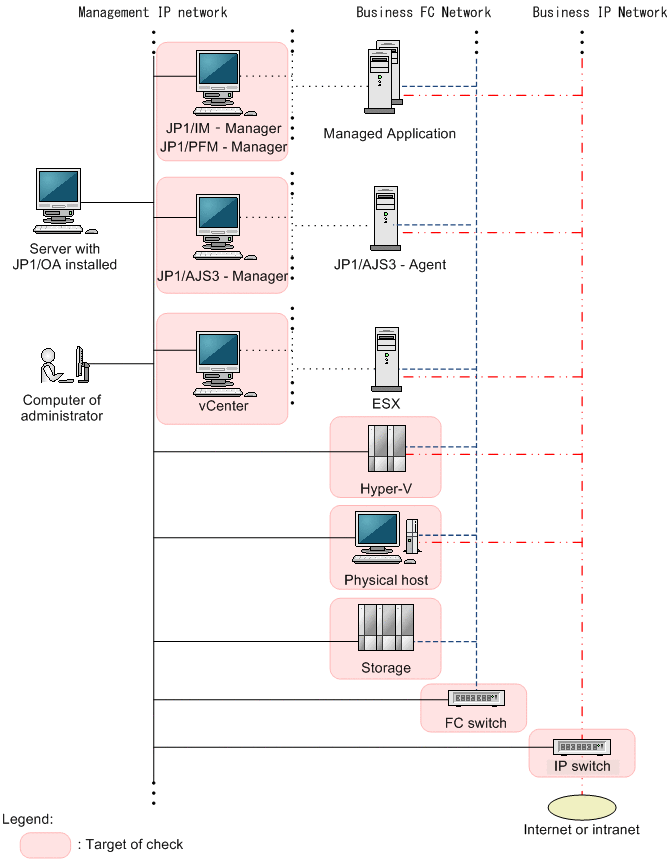

This section describes the checks you need to perform before installing JP1/OA. The following figure shows the specific elements of the system that need to be checked before installation:
Procedure
-
Reference the sizing information published on the JP1 support page, and select an appropriate configuration according to the scale of the monitoring target. This manual assumes a medium-scale environment to be monitored. Make sure that the server on which JP1/OA will be installed satisfies the following conditions:
-
Physical memory: 16.0 GB or more
-
Free disk space: 180 GB or more
-
CPU: 4 or more cores
-
OS: Windows Server 2012 or later
-
-
Make sure that the server on which JP1/OA will be installed has network access to targets of check which have direct connection to JP1/OA.
-
Check the following aspects of the computer of the server administrator:
-
Web browser: Google Chrome 78 or later, Firefox ESR 91, Internet Explorer 11, or Microsoft Edge (Chromium version)
-
Web browser language settings: Make sure that the language with the highest priority in the Web browser (English (en) or Japanese (ja)) is the language of the operating system.
-
