7.5.1 Assumed operation / configuration

Manage the management tool A that monitors the Manager-Agent method with the Intelligent Integrated Management Base.

The management tool A monitors the logs and the performance of the User program / OS on the monitored host. The monitoring result is reported from an agent of the management tool A to the manager, then the manager of the management tool issues a JP1 event and notifies it to JP1/IM.

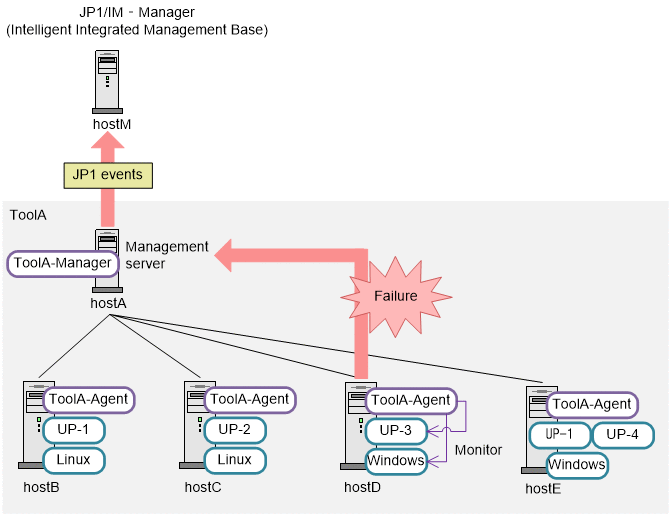

Figure 7‒5: Operation and configuration using management tool A

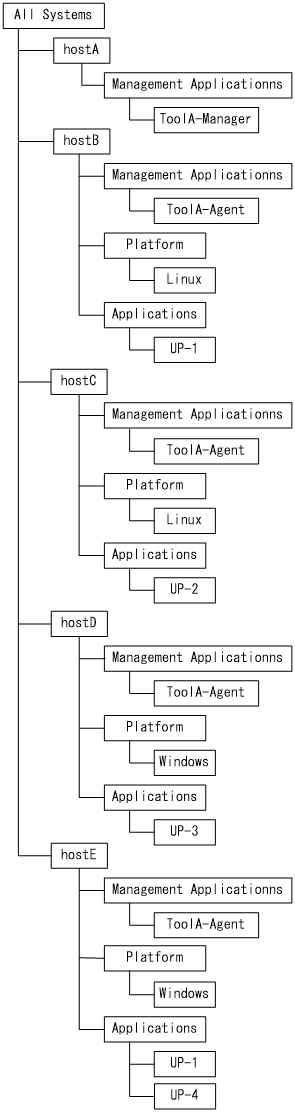

The following figure shows the tree structure when management tool A is managed by Intelligent Integrated Management Base.

Figure 7‒6: the tree structure when management tool A is managed by Intelligent Integrated Management Base
