7.1 SID

A SID is an identifier that uniquely identifies components of each product retrieved using the configuration collection adapter command and a user-created plug-in. There are three types of SIDs: configuration information SIDs, tree SIDs, and event SIDs. SIDs are assigned by JP1/IM - Manager (Intelligent Integrated Management Base).

A unique SID is composed of class-name pairs, each of which is separated by a forward slash (/). A pair (structured identifier) is a combination of the class of a component element and the name of the component element in the class. The following example illustrates the structure of a SID.

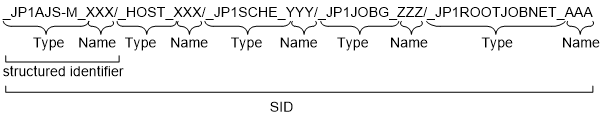

Figure 7‒1: Example illustrating the structure of a SID

[Figure]

The order of pairs is not arbitrary, which represents nested component elements in the product. For details, see the section that describes the information retrieved from each product in the JP1/Integrated Management 2 - Manager Overview and System Design Guide.

The following rules govern SIDs:
