5.3 Monitoring tree model for the server-oriented tree
The following figures show the monitoring tree model that is generated when the server-oriented tree template is selected for generating a monitoring tree automatically.

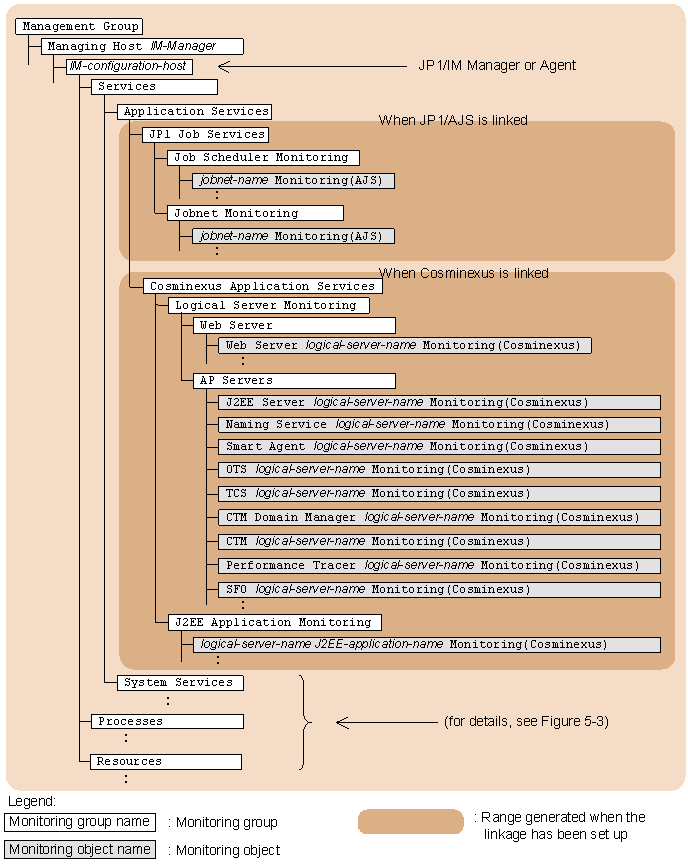

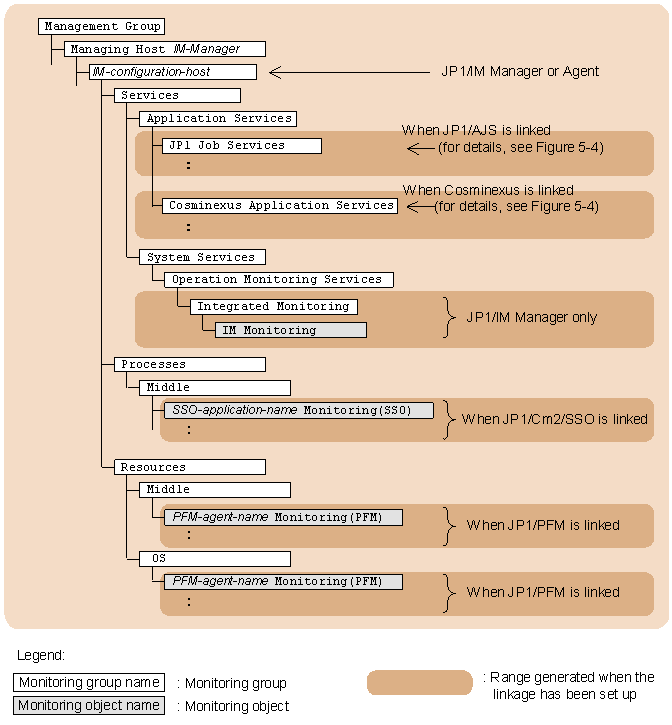

Monitoring tree model generated when the server-oriented tree template is selected
