5.20.1 WMI/NetBIOS page
The System Common Settings window has the WMI/NetBIOS page, which is displayed when JP1/IM - View is connected to the Windows version of JP1/IM - Manager. Specify settings if you want to set the authentication information for WMI connections as common values. This page is not displayed when the IM configuration management viewer is connected to the UNIX version of JP1/IM - Manager.

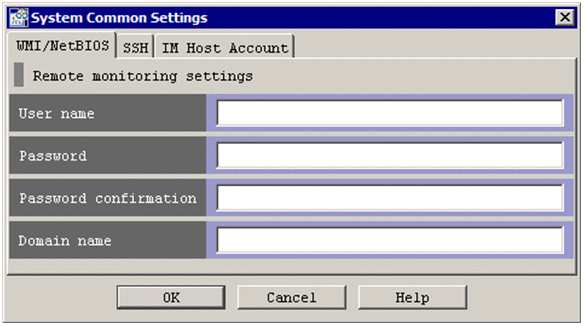

The following figure shows an example of the WMI/NetBIOS page.
|
|
![[Figure]](GRAPHICS/CF046000.GIF)
The following describes the items displayed on the WMI/NetBIOS page.
- User name
-
Specify a user who has Administrator permission on the monitored host. Alphabetic characters are not case sensitive. The user name can use alphanumeric characters and symbols other than control characters. A character string having from 0 through 255 bytes can be specified. The previously specified user name is used as the initial value. If no user name has previously been specified, a blank is displayed.
This item cannot be omitted if there are entries in other text boxes on the page.
- Password
-
This text box specifies the password. Alphabetic characters are case sensitive. The password can use alphanumeric characters and symbols other than control characters. A character string having from 0 through 255 bytes can be specified. The previously specified password is used as the initial value, but the characters are masked by asterisks (*). If no password has previously been specified, a blank is displayed.
This item cannot be omitted if there are entries in text boxes other than User name.
- Password confirmation
-
This text box specifies the password again for confirmation. The characters that can be used, the maximum length, and the default value are the same as those for the Password text box.
- Domain name
-
This text box specifies the domain name. Alphabetic characters are not case sensitive. The domain name can use alphanumeric characters and symbols other than control characters. A character string having from 0 through 255 bytes can be specified. The default is the previously specified character string. If no character string has been specified, the default is blank.
