5.19 Change Monitoring Group Name window

The Change Monitoring Group Name window is used to rename monitoring group names. This window can open when the user attempts to paste a monitoring group by selecting Edit, Business Group, and then Paste on the Business Group page of the IM Configuration Management window. If the destination node contains a monitoring group or host having the same name as the monitoring group being pasted, the Change Monitoring Group Name window opens.

The following figure shows an example of the Change Monitoring Group Name window.

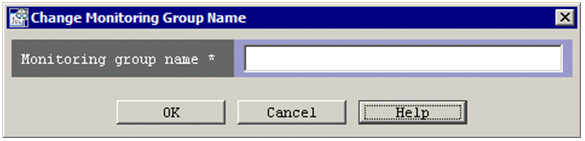

Figure 5‒35: Example of the Change Monitoring Group Name window

[Figure]

The following describes the items displayed in the Change Monitoring Group Name window.

Monitoring group name

This text box specifies the new name to be assigned to the monitoring group. Alphabetic characters are case sensitive. Control characters, slashes (/), and commas (,) cannot be used. A character string that begins or ends with a space cannot be specified. The monitoring group name must be unique in the same system hierarchy level. A character string having from 1 through 255 bytes can be specified. The default is the current monitoring group name followed by (n), where n is a number from 2 to 999.

Do not use any environment-dependent character for Monitoring group names. Such a character might cause character corruption.
