4.19 Login User List window

The Login User List window displays a list of the users logged in to JP1/IM - Manager (Central Scope). This window is displayed when the user chooses Options from the menu bar of the Monitoring Tree window and then Logged-in User List.

The Login User List window displays the following four items of user information:

• User Name

• Host Name

• IP Address

• Login Date/Time

The following shows an example of the Login User List window.

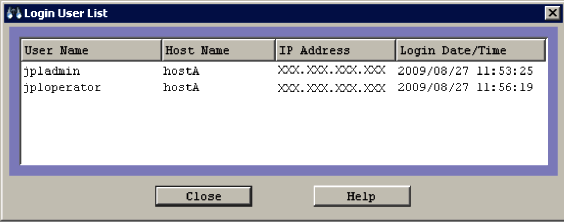

Figure 4‒28: Login User List window
