4.1 Overview of the Monitoring Tree window

The Monitoring Tree window appears when the user logs in to JP1/IM - Manager (Central Scope) from the Login window with Central Scope selected or when the user clicks [Figure] on the toolbar of the Login window.

Note that some windows, buttons, and other items might not be enabled or displayed, depending on the version of JP1/IM - Manager (Central Console). For details, see H. Connectivity with Previous Versions in the JP1/Integrated Management 2 - Manager Overview and System Design Guide.

The Monitoring Tree window provides a tree view for visually and centrally monitoring the system status. Nodes in the tree can be grouped on a monitored server basis or on a server basis. If a failure occurs, the system administrator can drill down through the tree to identify the cause of the failure or check the applications affected by the failure. The Monitoring Tree window can also be used to launch related programs.

If virtualization configuration information is imported, the Monitoring Tree window can be used to monitor a virtualized system.

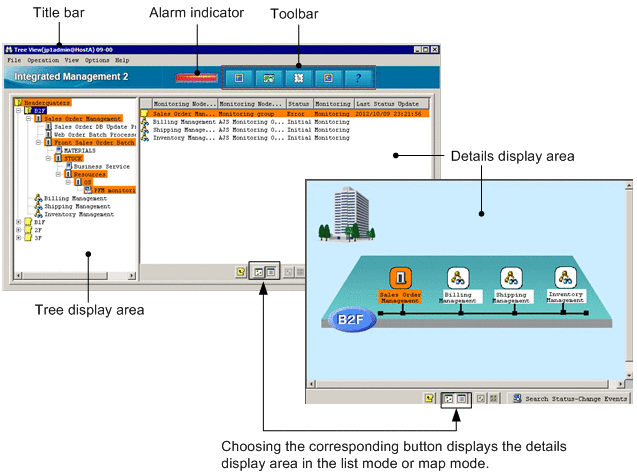

The following figure shows an example of the Monitoring Tree window.

Figure 4‒1: Monitoring Tree window

[Figure]

The following describes the items displayed in the Monitoring Tree window.

Title bar

The following two kinds of information are displayed in the title bar of the Monitoring Tree window:

About JP1/IM - View

The data version of the monitoring tree in the Monitoring Tree window is displayed in the title bar.

Note that the version displayed in the title bar is the data version of the server's monitoring tree, and is not a product version.

Login information

Login information is displayed in the following format:

Login information: user-name@host-name (or IP-address)

Alarm indicator

Flashes if a failure occurs in the monitored application system.

The following table describes the conditions that cause the alarm indicator to flash under the default settings.

Table 4‒1: Conditions that cause the alarm indicator to flash

Setting and status of the top node

Alarm indicator state

Whether monitoring enabled

Application status

Enabled (Monitoring)

Warning, Normal, Debug, or Initial

Not lit

Enabled (Monitoring)

Emergency, Alert, Critical, or Error

Flashing

Disabled (Not monitoring)

Initial#

Not lit

#: The status of node set to Not monitoring is always Initial.

You can change the conditions that cause the alarm indicator to flash. For details, see System profile of Central Scope (jcs_sysprofile_xxx.def) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.

Toolbar

Provides buttons for executing functions that are frequently used in the Monitoring Tree window.

[Figure] (Update Tree to Latest Status button)

Reads the tree configuration information from the connected JP1/IM - Manager (Central Scope), and refreshes the tree with the information. If this button is clicked when tree nodes are open, only the top and second-level nodes are displayed. The third-level and lower nodes are not displayed.

[Figure] (Visual Monitoring button)

Displays the Open Visual Monitoring Window window.

[Figure] (Start Integrated Function Menu button)

Displays the Tool Launcher window.

[Figure] (Central Console)

Displays the Event Console window.

[Figure] (Help button)

Displays the manual.

The user can customize the toolbar in the Monitoring Tree window by editing three definition files. For details, see the following references:

Start program definition file (!JP1_CS_APP0.conf) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference

Toolbar definition file (!JP1_CS_FTOOL0.conf) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference

Icon operation definition file (!JP1_CS_FTREE0.conf) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference

Tree display area

Displays the elements that make up the application system that is monitored in a tree structure. The following table describes the items displayed in the tree display area.

Table 4‒2: Items displayed in the tree display area

Item

Description

Plus sign (+) icon

A plus sign (+) icon is displayed beside a group node (monitoring group) that has child nodes when the child nodes are not displayed.

When the plus sign (+) icon is clicked, the group node is expanded to show the child nodes, and the icon changes to a minus sign (-) icon.

Minus sign (-) icon

A minus sign (-) icon is displayed beside a group node (monitoring group) that has child nodes when the child nodes are displayed.

When the minus sign (-) icon is clicked, the group node is collapsed to hide the child nodes, and the icon changes to a plus sign (+) icon.

Monitoring group

A tree node that has or can have child nodes. When a monitoring group has child nodes, a plus sign (+) or minus sign (-) icon is displayed beside the monitoring group.

When a monitoring group is selected in the tree display area, the child nodes are displayed in the details display area. If the monitoring group has no child nodes, nothing is displayed in the details display area.

When a collapsed monitoring group is double-clicked, the monitoring group is expanded to show the child nodes.

When an expanded monitoring group is double-clicked, the monitoring group is collapsed to hide the child nodes.

Monitoring object

A bottom-level tree element that has no child nodes. A plus sign (+) or minus sign (-) icon is not displayed beside this element.

When a monitoring object is selected in the tree display area, the detailed information of the monitoring object is displayed in the details display area.

When a monitoring object is double-clicked, the Properties window opens, and displays the attributes of the monitoring object.

Virtual root node

When the logged-in user's monitoring range in the tree is set and enabled, the nodes that the user can monitor are displayed in a tree structure under a top-level node called a virtual root node, which is indicated by [Figure] (or [Figure]).

When the virtual root node is selected in the tree display area, the child nodes of the virtual root node are displayed in the details display area. If the virtual root node has no child nodes, nothing is displayed in the details display area.

Details display area

Displays the child nodes of a monitoring group or virtual root node selected in the tree display area, or displays the details of a monitoring object selected in the tree display area. The displayed details include node name, node type, application status, whether monitoring is enabled, and time status last updated. The details display area is displayed in map mode when [Figure] is clicked and in list mode when [Figure] is clicked.

When a monitoring group is double-clicked in the details display area, the child nodes are displayed. At the same time, the corresponding monitoring group in the details display area is expanded.

When a monitoring object is double-clicked in the details display area, the Properties window opens, and displays the attributes of the monitoring object.

The nodes displayed in list mode can be sorted by status (Emergency, Alert, Critical, Error, Warning, Normal, Debug, and Initial, in this order). The nodes are sorted by status when the user chooses View from the menu bar, Sort Status, and then Sorted.

The following table describes the items displayed in the details display area.

Table 4‒3: Items displayed in the details display area

Item

Description

Icons

The icons of monitoring nodes are displayed.

If icons overlap in map mode, the icon of a node with a higher node ID is displayed in front of the icon of a node with a lower node ID. If a check mark is displayed for Visual Icon display on the View menu, icons are displayed in the order specified in the Monitoring Tree (Editing) window.

Visual Icon

If a check mark is displayed for Visual Icon display on the View menu, the Visual Icon is displayed for the monitoring node.

This information is displayed only in map mode.

If Visual Icon overlap in this area, they are displayed in the order specified in the Monitoring Tree (Editing) window.

Monitoring Node Name

The name of each monitoring node is displayed.

Monitoring Node Type

The type of each monitoring node is displayed. A monitoring group, which is a group of nodes, is indicated as Monitoring Group. Monitoring objects are indicated as AJS Monitoring Object, SSO Monitoring, or User Monitoring Object. This information is not displayed in map mode.

Status

The status of the application monitored by each monitoring node is displayed. Emergency, Alert, Critical, Error, Warning, Normal, Debug, or Initial can be displayed.

This information is not displayed in map mode.

Monitoring

Whether monitoring by the monitoring node is enabled is displayed. If monitoring is enabled, Monitoring is displayed. If monitoring is disabled, Not monitoring is displayed.

This information is not displayed in map mode.

Last Status Update

The date on which the node status was last updated is displayed.

This information is not displayed in map mode.

[Figure] (Move to Upper Monitoring Group button)

Clicking this button selects the parent node of a node selected in the tree display area. The focus moves to the parent node in the tree display area, and the details of the parent node are displayed in the details display area.

[Figure] (Icon View button)

Clicking this button switches the details display area to map mode, in which the information of the monitoring group or monitoring object selected in the tree display area is displayed in map format. Icons are placed at the locations set in the Monitoring Tree (Editing) window. The icons can also be moved in the details display area in map mode, but the locations of the icons are reset when the Monitoring Tree window is closed.

[Figure] (Detailed View button)

Clicking this button switches the details display area to list mode, in which the information of the monitoring node selected in the tree display area is displayed in list format.

[Figure] (Select Block button)

Clicking this button allows the user to select the icons of multiple monitoring groups or monitoring objects displayed in map mode at the same time. When this button is clicked, the user can draw a rectangle by dragging to enclose the icons. All the icons in the rectangle are selected. This button is disabled in list mode.

[Figure] (Set in Equal Intervals button)

Clicking this button temporarily aligns the icons of monitoring groups or monitoring objects displayed in map mode at equal intervals. The icons are reset to their former locations when the Monitoring Tree window is closed. This button is disabled in list mode.

Search Status-Change Events

Clicking this button displays the events that caused the node status to change in the Event Console window. Events are selected based on the conditions set in the event receiver filter. The event receiver filter settings can be checked in the Settings for Event Receiver Filter window. This button is disabled when a virtual root node is selected.

Pop-up menu

In the tree display area and details display area, the user can select and right-click a node to display a pop-up menu. If the selected node is a virtual root node, the pop-up menu appears, but the menu does not contain any items that can be chosen.

The following item on the pop-up menu appears only if specific conditions are met.

Display Order

This item can be chosen if a check mark is displayed for Visual Icon display on the View menu. Even if multiple monitoring nodes have been selected, the user can choose this item.

The user can temporarily change the Display Order of a monitoring node by choosing the following commands. If the user closes the window, and then opens it again, the Display Order is reset to the one specified in the Monitoring Tree (Editing) window.

  • Move to the foremost

    The selected monitoring node is displayed in the front.

  • Move 1 level upward

    The selected monitoring node moves forward one position in the Display Order.

  • Move 1 level backward

    The selected monitoring node moves back one position in the Display Order.

  • Move to the backmost

    The selected monitoring node moves to the backmost position in the Display Order.

For details about other items appearing on the pop-up menu, see the explanations below of the corresponding menu items available from the menu bar.

The following table describes the menu items available from the menu bar of the Monitoring Tree window.

Table 4‒4: Menu items available from the menu bar of the Monitoring Tree window

Menu

Command

Description

File

Save Monitoring-Tree Status

Saves the status information (such as Normal and Error) and common conditions of the displayed nodes in a CSV file on the local computer as a tree configuration file. When the logged-in user's monitoring range in the tree is set and enabled, the user cannot choose this menu item.

Central Console

Opens the Event Console window.

When the Event Console window opens, a user who has logged in to JP1/IM - Manager (Central Scope) is logged in to the window. No Login window appears.

If the Event Console window is displayed within a process, the Event Console window is displayed in front.

Close

When the Event Console window has been displayed by choosing Central Console from the File menu or by clicking [Figure], and the user executes the Close command, following occurs:

  • The Monitoring Tree window is hidden.

  • If the Tool Launcher window is displayed, it continues to be displayed.

When the Monitoring Tree window has not been displayed by choosing Central Console from the File menu or by clicking [Figure], and the user executes the Close command, the following occurs:

  • The KAVB0122-I message is displayed in a dialog box. The user can log out by clicking Yes.

  • If the Tool Launcher window is displayed, it closes.

Exit, Logout

Lets the user log out from JP1/IM - Manager (Central Scope), and closes the window that is currently displayed. When the Event Console window is displayed, it closes after the Monitoring Tree window closes.

Operation

Change Status

Lets the user change the status of a node selected in the Monitoring Tree window. A check mark indicates the current status, which the user can change by choosing another status.

Change Monitoring Status

Lets the user select the monitoring status of a monitoring node selected in the Monitoring Tree window from the following statuses:

  • Monitoring

    Monitoring by the monitoring node is enabled.

  • Not monitoring

    Monitoring by the monitoring node is disabled.

A check mark indicates the current status, which the user can change by choosing the other status.

If the monitoring status of a parent node is changed, the monitoring status of the child nodes is also changed.

View

Icon View

Switches the details display area to map mode, in which the information for the monitoring group or monitoring object selected in the tree display area is displayed in map format.

Icons are placed at the locations set in the Monitoring Tree (Editing) window. The icons can also be moved in the details display area in map mode, but they are reset to their former locations when the Monitoring Tree window is closed.

Detailed View

Switches the details display area to list mode, in which the information of the monitoring node selected in the tree display area is displayed in list format.

Visual Icon display

Specifies by means of a check mark whether the Visual Icon can be used.

If a check mark is displayed, the Visual Icon specified for the monitoring group or the monitoring object can be displayed in the detailed display area in map mode and in a Visual Monitoring window.

Set in Equal Intervals

Temporarily aligns the icons of monitoring groups or monitoring objects displayed in map mode at equal intervals. The icons are reset to their former locations when the Monitoring Tree window is closed.

Visual Monitoring

Displays the Open Visual Monitoring Window window.

Search

Opens the Search window when a monitoring group has been selected in the Monitoring Tree window. If the Search window is already open, it is brought to the front.

When a monitoring object or virtual root node has been selected in the Monitoring Tree window, this command cannot be chosen.

Guide

Opens the Guide window for the monitoring node selected in the Monitoring Tree window only if guide information for the node exists.

Search Status-Change Events

Displays the events that caused the node status to change in the Event Console window. Events are selected based on the conditions set in the event receiver filter. If the window is already open, it is brought to the front. The event receiver filter settings can be checked in the Settings for Event Receiver Filter window.

Update Tree to Latest Status

Reads the tree configuration information from the connected JP1/IM - Manager (Central Scope), and refreshes the tree with the information. When the configuration of the nodes displayed in the Monitoring Tree window has changed, the top-level node is selected in initial status.

Properties

Opens the Properties window (with the General page displayed) for the monitoring node selected in the Monitoring Tree window.

Sort Status

Sorts the listed nodes by status. If Sorted is selected, the nodes are sorted in order by Emergency, Alert, Critical, Error, Warning, Normal, Debug, and Initial. The nodes in the same status are sorted in order of last status-update time. If Not sorted is selected, the nodes are listed in order of last status-update time.

This command can be used to sort the nodes listed in the details display area of the Monitoring Tree window and the nodes listed in the Search window.

Options

Select Block

Allows the user to select the icons of multiple monitoring groups or monitoring objects displayed in map mode at the same time. When this command is chosen, the user can draw a rectangle by dragging to enclose the icons. All the icons in the rectangle are selected.

Basic Information

Opens the Properties window (with the Basic Information page displayed) for the node selected in the Monitoring Tree window.

Status-Change Condition

Opens the Properties window (with the Status-Change Condition page displayed) for the node selected in the Monitoring Tree window.

Common Condition Settings

Opens the Common Condition Settings window, which can be used to add, delete, edit, or check the common conditions managed by JP1/IM - Manager (Central Scope).

This command is available only to users who have JP1_Console_Admin permission.

Event-Issue Conditions

Opens the Properties window (with the Event-Issue Conditions page displayed) for the node selected in the Monitoring Tree window.

Edit Tree

Opens the Monitoring Tree (Editing) window, which can be used to edit the tree without connecting to JP1/IM - Manager (Central Scope).

Logged-in User List

Opens the Login User List window, which lists the users who are currently logged in to JP1/IM - Manager (Central Scope).

Start Integrated Function Menu

Opens the Tool Launcher window.

Help

Help Contents

Displays the Help contents.

About JP1/IM - View

Displays the JP1/IM - View version information.
