3.42 Event-Information Mapping Definitions window

The Event-Information Mapping Definitions window is used to map items displayed in the event list with program-specific extended attributes so that the extended attributes can be displayed in the corresponding columns of the event list.

To open the Event-Information Mapping Definitions window, the user must have JP1_Console_Admin permission.

If the function for restricting reference permissions and operation permissions is enabled for business groups, this operation might not be performed depending on the combination of the JP1 resource group and permission level. For details, see 44.1.4(2) Assigning a JP1 resource group and permission level to a JP1 user in the JP1/Integrated Management 2 - Manager Overview and System Design Guide.

This window is displayed when the user chooses Options from the menu bar of the Event Console window and then Event-Information Mapping Definitions.

The following figure shows an example of the Event-Information Mapping Definitions window.

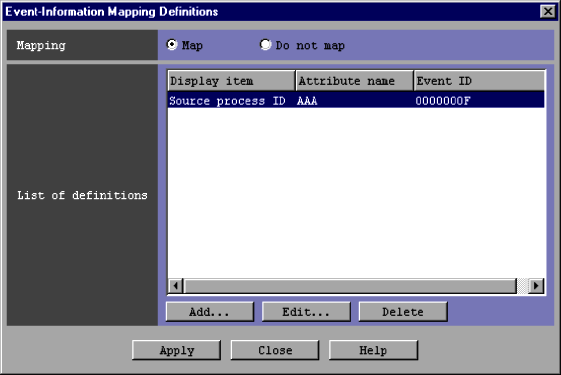

Figure 3‒80: Event-Information Mapping Definitions window

[Figure]

The following describes the items displayed in the Event-Information Mapping Definitions window.

Mapping

Specifies whether to enable mapping between the display items and program-specific extended attributes. Selecting Map enables the mapping.

List of definitions

This area lists the event-information mapping definitions that have already been set. A mapping definition is displayed on each line. A maximum of 16 definitions can be set.

If an event-information mapping definition is double-clicked in the list, the Event-Information Mapping Detailed Definitions window appears.

Add

Clicking this button allows the user to add a new event-information mapping definition. When this button is clicked, the Event-Information Mapping Detailed Definitions window appears.

Edit

To edit an event-information mapping definition that appears in the List of definitions area, select the definition in the list and click the Edit button. When this button is clicked, the Event-Information Mapping Detailed Definitions window appears.

Delete

To delete an event-information mapping definition that appears in the List of definitions area, select the definition in the list and click the Delete button.
