JP1 Version 12 JP1/Integrated Management 2 - Manager GUI Reference


3.33.1 Action Parameter Detailed Definitions window

The Action Parameter Detailed Definitions window has two pages: Action Condition and Execution Monitoring.

Organization of this subsection

(1) Action Condition page

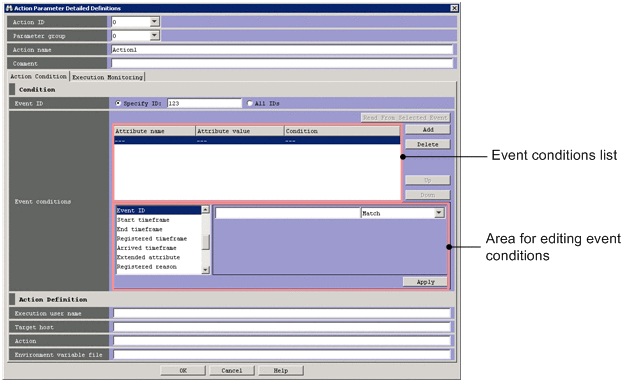

The following figure shows an example of the Action Condition page:

Figure 3‒62: 3-Action Parameter Detailed Definitions window (Action Condition page)

[Figure]

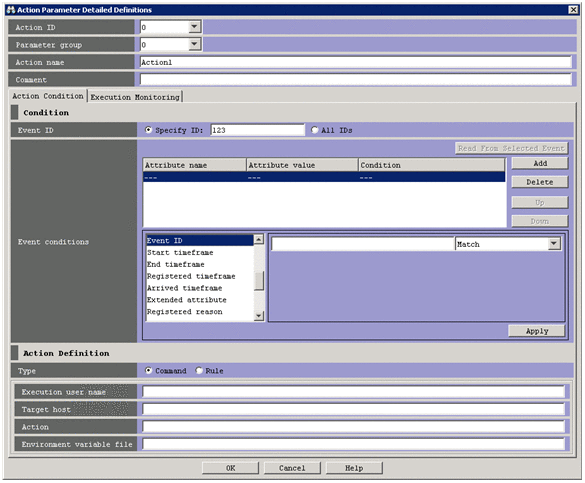

When linkage with JP1/IM - Rule Operation is enabled, the Type area is added under Action Definition in the Action Parameter Detailed Definitions window, as shown in the following figure.

Figure 3‒63: 3-Action Parameter Detailed Definitions window (when linkage with JP1/IM - Rule Operation is enabled)

[Figure]

The following describes the items displayed in the Action Parameter Detailed Definitions window.

Action ID

Specifies the action ID of the action execution condition. This is displayed when the version of the action definition file is 11-50 or later (DESC_VERSION is 4).

You can select an action ID from the drop-down list or enter it directly. The drop-down list shows unused action IDs in the range from 0 to 999, and unedited action IDs (only when the window was opened by clicking the Edit button).

Available values that you can enter are unused action IDs in the range from 0 to 2,147,483,647.

You cannot specify this when you set Parameter group to &.

Parameter group

Specifies the parameter group. A one-digit number from 0 to 9 or an ampersand (&), which indicates the AND condition, can be specified.

Action name

Specifies the action name. Strings of 1 to 50 bytes can be specified. Specifiable characters are characters other than the control characters (0x00 to 0x1F, 0x7F to 0x9F). Action n appears if the Action Parameter Detailed Definitions window is displayed by clicking the Apply button in the Action Parameter Definitions window. For n, the system selects the smallest available numeric value from 1 to 1,000 to create a name that does not duplicate an existing action name.

The action name cannot be omitted. Note, however, that if the user specifies & for Parameter group, an action name cannot be specified.

Comment

The user can specify a comment for the automated action definition by specifying a string of no more than 1,040 bytes. Specifying a comment is optional.

The following describes the items displayed on the Action Condition page.

Event ID

Specifies a specific event ID or all event IDs for use as a condition for executing the automated action.

To specify a specific event ID, the user selects the Specify ID radio button, and then enters the event ID in the text box. The event ID consists of a basic part and an extended part. Each part is a hexadecimal number of not more than 8 bytes. You can specify a value from 0 to 7FFFFFFF. The two parts are separated by a colon (:). The extended part can be omitted.

To specify all event IDs, the user selects the All IDs radio button.

Read From Selected Event

Clicking this button automatically enters an event condition by using the attribute value of the JP1 event selected from the event list. This button is available only if the user selects one JP1 event from the event list displayed when the Action Parameter Detailed Definitions window opens. The event conditions specified before the Read From Selected Event button is clicked are deleted. If the JP1 event selected in the event list scrolls out of the list, no condition is entered.

Event conditions list

This area displays the event conditions. Conditions that are higher in the list have higher priority.

The attribute name of an event condition is displayed in the Attribute name column. If the user specifies a specific extended attribute as the event condition, E. is prefixed to the attribute name, as in E.SEVERITY.

The attribute value is displayed in the Attribute value column. If multiple attribute values are specified, the values must be separated with a comma (,). These values are combined using the AND operator, and treated as a single condition.

The Condition column displays the comparative operator for the event condition (First characters, Match, Does not match, Is contained, Is not contained, or Regular expression).

Add

Clicking this button allows the user to add a new event condition. When this button is clicked, an event condition that has not been set is added at the bottom of the event condition list. A maximum of 256 event conditions can be added.

Delete

Clicking this button deletes a selected event condition.

Up

Clicking this button moves the selected event condition up one line. Use this button to change the priority of the event conditions.

Down

Clicking this button moves the selected event condition down one line. Use this button to change the priority of the event conditions.

Apply

Clicking this button applies the settings specified in the area for editing event conditions to the event conditions list. If the event condition is a regular expression that satisfies either of the following conditions, the KAVB0517-W message is displayed in a dialog box:

  • Regular expression that begins or ends with .*

  • Regular expression that includes a succession of .*

For details about the KAVB0517-W message, see 2.2 Messages related to Central Console - View (KAVB0001 to KAVB2000) in the manual JP1/Integrated Management 2 - Manager Messages.

Area for editing event conditions

This area allows the user to edit event conditions. The area that is displayed differs according to the attribute that is selected. Each area is described below.

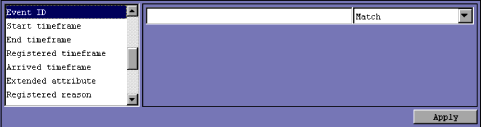

Event ID editing

[Figure]

The area shown above is displayed for the following attribute:

  • Event ID

You can specify a maximum of eight hexadecimal digits as the event ID. When specifying multiple event IDs, the entire string must not exceed 4,096 bytes. Control characters cannot be specified. The range of specifiable values is from 0 to 7FFFFFFF.

If Regular expression is selected, alphabetic characters are case sensitive.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

A maximum of 100 event IDs, separated by a comma (,), can be specified. Note, however, that if Regular expression is selected from the drop-down list, multiple event IDs cannot be specified.

From the drop-down list on the right, the user selects a condition for the specified event ID from Match, Does not match, and Regular expression.

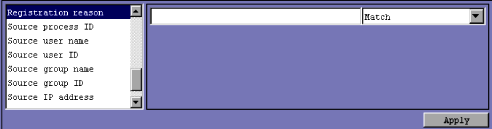

Numeric value editing

[Figure]

The area shown above is displayed for the following attributes:

  • Registered reason

  • Source process ID

  • Source user ID

  • Source group ID

A decimal integer that is no more than 4,096 bytes can be specified. You can specify a value from -2,147,483,648 to 2,147,483,648.

A maximum of 100 numeric values, separated by a comma (,), can be specified. Note, however, that if Regular expression is selected from the drop-down list, multiple event IDs cannot be specified.

If Regular expression is selected, alphabetic characters are case sensitive.

From the drop-down list, the user selects a condition for the specified character string from Match, Does not match, and Regular expression.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

If the user selects either Match or Does not match, only an integer from 0 to 9 or a hyphen (-) can be specified.

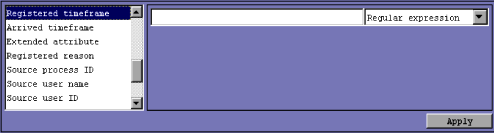

Date and time editing

[Figure]

The area shown above is displayed for the following attributes:

  • Registered timeframe

  • Arrived timeframe

A value of no more than 4,096 bytes in YYYYMMDDhhmmss format can be specified.

Multiple dates and times cannot be specified.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

Alphabetic characters are case sensitive.

From the drop-down list on the right, the user can select only Regular expression as the condition for the specified date and time.

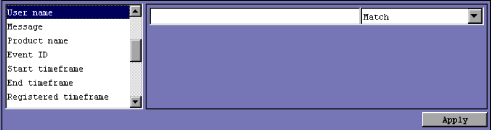

Character string editing

[Figure]

The area shown above is displayed for the following attributes:

  • Source user name

  • Source group name

  • Source IP address

  • Source host

  • Message

  • Product name

  • Object name

  • Root object name

  • Object ID

  • Occurrence

  • User name

  • Result code

  • Event source host name

To specify an IPv6 address for Source IP address, alphabetic characters must be lower case, as shown below:

0011:2233:4455:6677:8899:aabb:ccdd:eeff

The abbreviated form of an IP address like the one shown below cannot be specified:

2012:7:8::a:b

If the integrated monitoring database and IM Configuration Management database are enabled, a business group name in path format can be specified for Source host and Event source host name. Either Match or Does not match can be selected as a condition. If Match or Does not match is not selected when the integrated monitoring database and IM Configuration Management database are disabled, a business group name specified in path format is treated as a host name.

Note that Event source host name can be specified only if the mapping of the event source host is enabled. If the mapping of the event source host is disabled, conditions for Event source host name can be specified by specifying JP1_SOURCEHOST as the attribute name when the area for editing event conditions is in the Extended-attribute editing pattern.

A character string of no more than 4,096 bytes can be specified.

A maximum of 100 character strings, separated by a comma (,), can be specified. Note, however, that if Regular expression is selected from the drop-down list, multiple character strings cannot be specified.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

Alphabetic characters are case sensitive.

From the drop-down list on the right, the user selects a condition for the specified character string from First characters, Match, Does not match, Is contained, Is not contained, and Regular expression.

If Regular expression is not selected in the drop-down list on the right when ON is set for the -ignorecasehost option of the jcoimdef command, the case of alphabetic characters is ignored for the following attributes:

  • Source host

  • Event source host name

To specify a character string that includes tabs, line breaks, or commas (,), use the representation shown in the following table.

Table 3‒21: Specification of a character string that includes tabs, line breaks, or commas for the editing of character strings

Number

Item

Representation

1

Tab (0x09)

\t

2

Linefeed (0x0a)

\n

3

Carriage return (0x0d)

\r

4

Comma (0x2c)

When used as a separator

,

When used as an ordinary character and Regular expression is selected in the drop-down list on the right

,

When used as an ordinary character and Regular expression is not selected in the drop-down list on the right

\,

The representation of tabs and line breaks used in the Action Parameter Detailed Definitions window is different from the representation used in the automated-actions definition file (actdef.conf). For details, see Automated action definition file (actdef.conf) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.

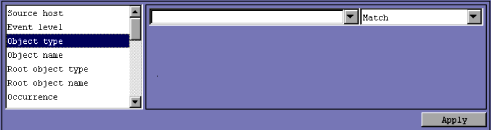

Editing of character strings with input candidates

[Figure]

The area shown above is displayed for the following attributes:

  • Object type

  • Root object type

A character string of no more than 4,096 bytes can be specified.

A maximum of 100 character strings, separated by a comma (,), can be specified. Note, however, that if Regular expression is selected from the drop-down list, multiple character strings cannot be specified.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

Alphabetic characters are case sensitive.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, Is contained, Is not contained, and Regular expression.

To specify a character string that includes tabs, line breaks, or commas (,), use the representation shown in the following table.

Table 3‒22: Specification of a character string that includes tabs, line breaks, or commas for the editing of character strings with input candidates

Number

Item

Representation

1

Tab (0x09)

\t

2

Linefeed (0x0a)

\n

3

Carriage return (0x0d)

\r

4

Comma (0x2c)

When used as a separator

,

When used as an ordinary character and Regular expression is selected in the drop-down list on the right

,

When used as an ordinary character and Regular expression is not selected in the drop-down list on the right

\,

The representation of tabs and line breaks used in the Action Parameter Detailed Definitions window is different from the representation used in the automated-actions definition file (actdef.conf). For details, see Automated action definition file (actdef.conf) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.

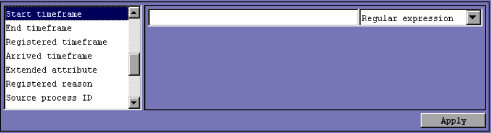

Total number of seconds editing

[Figure]

The area shown above is displayed for the following attributes:

  • Start timeframe

  • End timeframe

A numeric value of no more than 4,096 bytes can be specified.

Multiple numeric values cannot be specified.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

Alphabetic characters are case sensitive.

From the drop-down list on the right, the user can select only Regular expression as the condition for the specified total number of seconds.

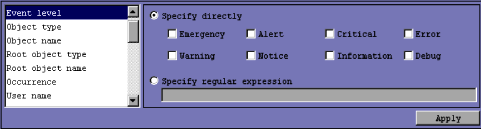

Severity-level editing

[Figure]

The area shown above is displayed for the following attribute:

  • Event level

To specify the severity by selecting a condition, the user selects the Specify directly radio button and then selects the check boxes for the desired severity levels from Emergency, Warning, Critical, Error, Warning, Notice, Information, and Debug.

To specify the condition for the severity level as a regular expression, select the Specify regular expression radio button, and enter the condition. The character string specified as the condition must be no more than 4,096 bytes.

Alphabetic characters are case sensitive.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

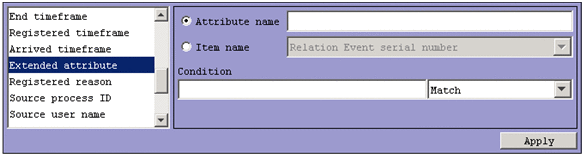

Extended-attribute editing

[Figure]

The area shown above is displayed for the following attribute:

  • Extended attribute

    Specify a condition for the program-specific extended attribute.

    Depending on the selected radio button, the item that can be specified differs.

  • When Attribute name is selected

    Specify a condition for the program-specific extended attribute by using an attribute name.

    The name specified in the Attribute name text box must be no more than 32 bytes of upper-case alphabetic characters, numeric characters, and underscores (_). The attribute name must begin with an upper-case alphabetic character.

  • When Item name is selected:

    Specify a condition for the program-specific extended attribute by using an item name.

    Specify a condition by selecting an item name from the Item name drop-down list. The displayed item names are program-specific extended attributes specified for the standard file and the extended file of the definition file for extended event attributes.

The condition the user specifies in the Condition text box must be a character string of no more than 4,096 bytes.

A maximum of 100 character strings, separated by a comma (,), can be specified. Note, however, that if Regular expression is selected from the drop-down list, multiple character strings cannot be specified.

Alphabetic characters are case sensitive.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

From the drop-down list on the right, the user selects a condition for the specified character string from First characters, Match, Does not match, Is contained, Is not contained, and Regular expression.

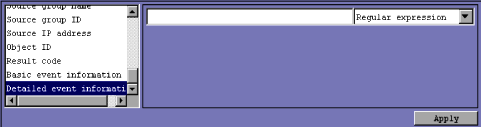

Compatibility editing

[Figure]

The area shown above is displayed for the following attributes:
  • Detailed event information

  • Basic event information

A character string of no more than 4,096 bytes can be specified.

If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). Each character is a one-byte character.

Alphabetic characters are case sensitive.

From the drop-down list on the right, the user can select only Regular expression as the condition for the specified character string.

Type

Specifies the type of the action to be executed. The Type area is displayed only if linkage with JP1/IM - Rule Operation has been set up.

  • Command: A command is executed.

  • Rule: A condition for notifying JP1/IM - Rule Operation of a rule startup request is set. When Rule is selected, <RULE> is always specified in the Action area, and the Execution user name, Target host, and Environment variable file text boxes are disabled and uneditable.

For details about setting up linkage with JP1/IM - Rule Operation, see 1010.3.1 Settings for enabling the JP1/IM - Rule Operation linkage function in the JP1/Integrated Management 2 - Manager Configuration Guide.

Execution user name

Specifies the JP1 user name under which the action is to be executed. The JP1 user name specified must be no more than 31 bytes and must not include a space character.

In addition, a variable can be used to specify attribute information of the received JP1 event. For example, to execute an action under the name of the user that issued an event, the user specifies $EVUSR. For details about variables that can be specified, see Variables that can be used in the Action Definition area of the Action Parameter Detailed Definitions window.

Target host

Specifies the name of the host on which the action is to be executed. The specified host name must not be more than 255 bytes, must not include a space character, and must be the name of a managed host defined in the system configuration definition.

A host group name can also be specified. If specified, it must be defined in the host group definition file.

For Target host, a business group name or monitoring group name that has no more than 2,048 bytes in path format can be specified. However, if the integrated monitoring database and the IM Configuration Management database are disabled at the time of login to JP1/IM, the name specified in path format is treated as a host name or host group name.

In addition, a variable can be used to specify attribute information of the received JP1 event. For example, $EVHOST can be specified to execute the action on the host where the event occurred. For details about variables that can be specified, see Variables that can be used in the Action Definition area of the Action Parameter Detailed Definitions window.

Action

Specifies the command to be executed as an action. The command line specified in this area can include variables that indicate attribute information of the received JP1 event.

For details about variables that can be specified, see Variables that can be used in the Action Definition area of the Action Parameter Detailed Definitions window.

Note that the specified command line must not end with a backslash (\).

For details about commands that can be specified, see 66. Command Execution by Automated Action in the JP1/Integrated Management 2 - Manager Overview and System Design Guide.

The maximum length of a command that can be executed as an action is 4,096 bytes. If the length of the command, including variables (such as $EVMSG) that can be used to define the action, exceeds 4,096 bytes, the command is not executed, and the status of the action becomes Fail. In the Message area of the Action Log Details window, the following message is displayed:

KAVB4421-W

If an action contains an unrecognizable character code (anything outside the ASCII character set), the action is not executed because of the shell or other specifications on the target host, or if executed, the results might be incorrect. In this case, the action does not fail, and its status becomes Ended. Invalid codes can also result when variables are replaced by their values at runtime. For the values that replace variables, check the applicable manuals for the products that issue JP1 events ahead of time.

Environment variable file

Specifies the full path name of the environment variable file saved on the host on which the command is executed. The maximum length of the specified full path name is 255 bytes.

The full path name can include variables that indicate attribute information of the received JP1 event. For details about the variables that can be specified, see Variables that can be used in the Action Definition area of the Action Parameter Detailed Definitions window.

Variables that can be used in the Action Definition area of the Action Parameter Detailed Definitions window

Variables can be used to specify the information contained in a JP1 event in the Action Definition area of the Action Parameter Detailed Definitions window for items such as Execution user name, Target host, Action, and Environment variable file. The variables are converted to information within the JP1 event when the action is executed.

The user specifies variables for these items in a format similar to $EVID. The following table describes the variables that can be used.

Table 3‒23: Variables that can be used in the Action Definition area of the Action Parameter Detailed Definitions window

Type of information

Variable name

Description

Information contained in the JP1 event basic attribute

EVBASE

Overall basic event information

EVID

Event ID (basic-code:extended-code)

EVIDBASE

Event ID (basic code)

EVDATE

Event occurrence date (yyyy/mm/dd)

EVTIME

Event occurrence time (hh:mm:ss)

EVPID

Process ID for the event-issuing source

EVUSRID

User ID for the event-issuing source

EVGRPID

Group ID for the event-issuing source

EVUSR

Name of the event-issuing source user

EVGRP

Name of the event-issuing source group

EVHOST

Name of the event-issuing source host

EVIPADDR

IP address of the event-issuing source

EVSEQNO

Serial number in the event database

EVARVDATE

Event arrival date (yyyy/mm/dd)

EVARVTIME

Event arrival time (hh:mm:ss)

EVSRCNO

Serial number in the event database of the event-issuing source

EVMSG

Overall message text

EVDETAIL

Overall detailed event information

Information contained in the JP1 event extended attribute

EVSEV

Severity of extended event information (Emergency, Alert, Critical, Error, Warning, Notice, Information, or Debug)

EVUSNAM

User name

EVOBTYP

Object type

EVOBNAM

Object name

EVROBTYP

Registration name type

EVROBNAM

Registration name

EV"PRODUCT_NAME"

Product name

EV"OBJECT_ID"

Object ID

EV"OCCURRENCE"

Occurrence

EV"START_TIME"

Start time

EV"END_TIME"

End time

EV"RESULT_CODE"

Return code

EV"JP1_SOURCEHOST"

Issuing host name

EV"extended-attribute-name"

Optional extended attribute

Other information

EV"@JP1IM_CORRELATE"

Correlation event flag:

  • 0: The event is not a correlation event.

  • 1: The event is a correlation event.

  • 2: The event is a correlation failure event.

EV"@JP1IM_ORIGINAL_SEVERITY"

Severity of extended event information (before the change)

(Emergency, Alert, Critical, Error, Warning, Notice, Information, or Debug)

EV"@JP1IM_CHANGE_SEVERITY"

Severity change flag:

  • 0: The severity has not been changed.

  • 1: The severity has been changed.

EV"@JP1IM_DISPLAY_MESSAGE"

Changed display message

EV"@JP1IM_CHANGE_MESSAGE"

Flag indicating whether the display message has been changed

  • The message has not been changed: 0

  • The message has been changed: 1

ACTHOST

Name of the manager for the action execution request source

EVENV1 to EVENV9

In the specified execution condition of an action, data pulled from within () in a regular expression

(This can only be used when an extended regular expression is used on a manager)

If a value cannot be found for a variable, the corresponding item remains blank. Note, however, that an optional extended attribute (EV"extended-attribute-name") and pulled data (EVENV1 to EVENV9) will be handled as variable names. Depending on the type of JP1 event, there might be items without variables and actions that cannot be executed because the information in each attribute contains codes not recognized as characters (anything outside the ASCII character set). In this case, the action either cannot be executed, or if executed, the execution result would be invalid. For products that issue JP1 events before the setup, see the applicable manuals.

Precautions regarding the specification of variables

(2) Execution Monitoring page

The following figure shows an example of the Execution Monitoring page.

Figure 3‒64: Action Parameter Detailed Definitions window (Execution Monitoring page)

[Figure]

Suppress

Specifies whether to suppress execution of the automated action.

  • Apply: Execution of the automated action is suppressed.

    When Apply is selected, the length of time (in seconds) that the automated action is to be suppressed must be specified in the Suppression time text box. The range of specifiable values is from 1 to 3,600. The default is 300.

  • Do not apply: Execution of the automated action is not suppressed.

    When Do not apply is selected, the Suppression time text box is disabled.

The default is Do not apply.

The Suppress area is disabled in the following cases:

  • An ampersand (&) is specified in the Parameter group area.

  • The Action name text box is blank.

Delay monitoring

Specifies whether to monitor delays in executing the automated action.

  • Apply: Delays in executing the action are monitored.

    When Apply is selected, the length of time (in seconds) for monitoring delays must be specified in the Monitoring time text box. If the action is not completed within the specified period of time, the action is regarded as a delayed action. The range of specifiable values is from 1 to 86,400. The default is 600.

  • Do not apply: Delays in executing the action are not monitored.

The default is Do not apply.

When delays in executing the automated action are monitored, if the execution of an action is delayed, a JP1 event is issued or a notification command is executed to report the delay. The method of reporting the abnormal status must be specified in the automatic action notification definition file (actnotice.conf) ahead of time.

The Action Log window, the List of Action Results window, or the Action Log Details window can be used to check the action delay status. Also, the Event Console window can be used to check whether the execution of an action has been delayed.

A monitoring interval appropriate for the automated action being monitored for execution delays needs to be set.
