3.26 Event Search Conditions (Program-Specific Information in Extended Attribute) window

The Event Search Conditions (Program-Specific Information in Extended Attribute) window is used to set program-specific extended attributes for JP1 events as filter conditions.

This window is displayed when the user clicks the Configure button in the Extended attribute area of the Event Search Conditions window, the Severe Event Definitions window, the Event Acquisition Settings window, the Common Exclusion-Conditions Settings window, the Settings for View Filter window, or the Detailed Settings for Event Receiver Filter window. The following figure shows an example of the Event Search Conditions (Program-Specific Information in Extended Attribute) window.

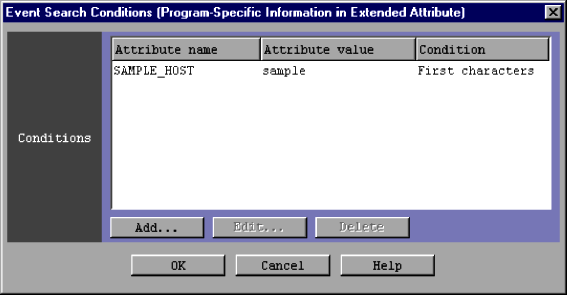

Figure 3‒54: Event Search Conditions (Program-Specific Information in Extended Attribute) window

The following describes the items displayed in the Event Search Conditions (Program-Specific Information in Extended Attribute) window.

Conditions

This area displays a list of program-specific extended attribute conditions that are already set. Attribute names, attribute values, and conditions are listed.

A program-specific extended attribute condition is displayed for each line. A maximum of five conditions can be set.

When a program-specific extended attribute condition is double-clicked, the Event Search Detailed Conditions (Program-Specific Information in Extended Attribute) window opens.

Add

Clicking the Add button allows the user to add a new program-specific extended attribute condition. When the button is clicked, the Event Search Detailed Conditions (Program-Specific Information in Extended Attribute) window opens.

Edit

To edit an existing program-specific extended attribute condition that appears in the Conditions list, select the condition in the list and then click the Edit button. When the button is clicked, the Event Search Detailed Conditions (Program-Specific Information in Extended Attribute) window opens.

Delete

To delete a program-specific extended attribute condition that appears in the Conditions list, select the condition in the list and then click the Delete button.
