3.11.2 Communication page

The following figure shows an example of the Communication page of the System Environment Settings window.

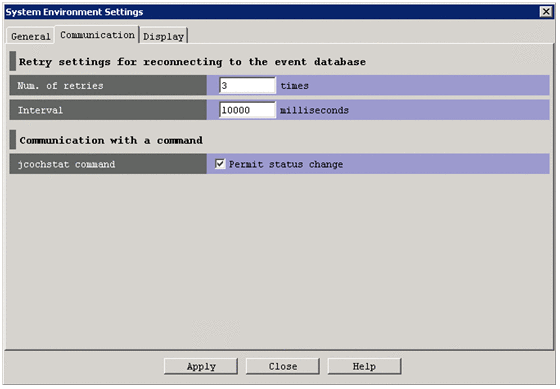

Figure 3‒26: System Environment Settings window (Communication page)

The following describes the items displayed on the Communication page of the System Environment Settings window.

Num. of retries

Specifies the number of times JP1/IM - View automatically retries connection when JP1/IM - View fails to connect to the event service or JP1/IM - View is disconnected from the event service. The range of specifiable values is from 0 to 100. The default is 3.

Interval

Specifies in milliseconds the interval at which JP1/IM - View automatically retries connection when JP1/IM - View fails to connect to the event service or JP1/IM - View is disconnected from the event service. The range of specifiable value is from 1 to 86,400,000. The default is 10,000.

jcochstat command

Specifies whether to allow the user to use the jcochstat command.

The jcochstat command can be used to change the event status. However, if it is inconvenient to have the user change the event status, the administrator can prevent the user from using this command.

If the Permit status change check box is selected, the user can use the jcochstat command.
