1.2.1 Login window of the Intelligent Integrated Management Base
You can open the Login window of the Intelligent Integrated Management Base by entering the URL of the Login window in the address bar (URL entry area) of the Web browser.
The URL is defined in the following syntax:
http://host-name-of-the-Intelligent-Integrated-Management-server:port-number/login
Note: The URL starts with https if SSL communication is used.

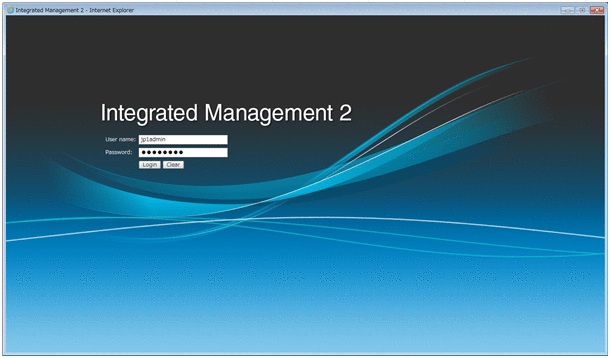

The Intelligent Integrated Management Base displays different Login windows depending on the authentication method to be used. The following figure shows the Login window of the Intelligent Integrated Management Base.
|
|
![[Figure]](GRAPHICS/DD010070.GIF)
- User name
-
If you want to be authenticated by JP1/Base to log in, enter the user name you want to use. The user name that is entered must be one that is already registered in JP1/Base on the authentication server. During registration of a user name, the permissions for operating JP1/IM windows must be granted for the user. For details about registering users permitted to log in and the permissions for operating JP1/IM windows, see the following manuals:
-
Registering a user
JP1/Base User's Guide (chapter on the settings for user management)
-
Granting permissions
JP1/Integrated Management 2 - Manager Overview and System Design Guide (E. Operating Permissions)
User names can consist of 1 to 31 alphanumeric characters, and are not case sensitive.
-
- Password
-
Text box for entering the password corresponding to the entered user name.
Passwords are case sensitive. A character string with 0 to 32 bytes can be specified.
|
|
![[Figure]](GRAPHICS/DD010080.GIF)

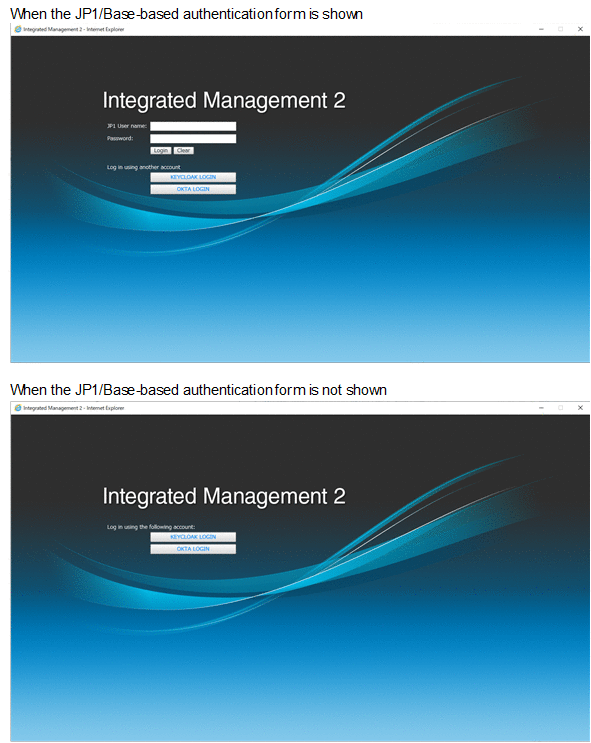

- JP1 User name / Password
-
Enter them if you want to be authenticated by JP1/Base to log in. See the descriptions of User name and Password in Login window of the Intelligent Integrated Management Base (when you want to be authenticated by JP1/Base).
- Log in using another account / Log in using the following account
-
The window displays buttons showing the names of OpenID providers. Click a button to display the authentication window of the OpenID provider. After you are authenticated by the OpenID provider, the Integrated Operation Viewer window appears.
To enable authentication by OpenID providers, they must be defined in the Intelligent Integrated Management Base definition file (imdd.properties) in advance.
For details, see Intelligent Integrated Management Base definition file (imdd.properties) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.
