9.2.4 Example 4 (cluster operation with command execution)

In this example, the manager is run in a cluster operation system, and is connected to two LANs that cannot be mutually routed, one of the LANs is used to connect to JP1/IM - View, and the other LAN is used to execute commands on the other host.

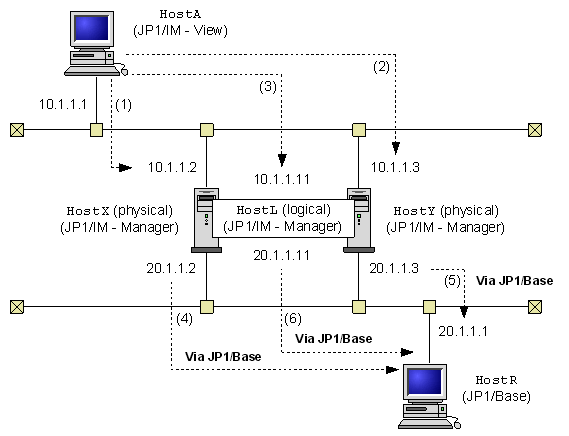

Figure 9‒4: Command execution in a multi-LAN environment (cluster operation)

The following tables show the settings for each host.

Table 9‒7: Settings for HostX, HostY, and HostL (JP1/IM - Manager)

Host name	Binding method	jp1host setting
HostX (physical host)	send ANY, receive IP	10.1.1.2, 20.1.1.2
HostY (physical host)	send ANY, receive IP	10.1.1.3, 20.1.1.3
HostL (logical host)	send ANY, receive IP	10.1.1.11, 20.1.1.11

Note that you need JP1/Base communication settings. For details of the settings, see the chapter that describes JP1/Base communication settings depending on the network configuration in the JP1/Base User's Guide.

Table 9‒8: Settings for HostA (JP1/IM - View)

Host name	Host to connect	Other conditions	Correspondence to number in parentheses in figure
HostA	HostX	Conversion from host name HostX to 10.1.1.2 must be possible.	1, 4
	HostY	Conversion from host name HostY to 10.1.1.3 must be possible.	2, 5
	HostL	Conversion from host name HostL to 10.1.1.11 must be possible.	3, 6
