7.1.3 JP1/IM configuration in a cluster system (for Windows)

To run JP1/IM - Manager in a cluster system, you must execute JP1/IM - Manager and JP1/Base under the control of the cluster software and be able to handle failovers. This subsection describes the configuration of JP1/IM in a cluster system.

Organization of this subsection

(1) Overview of a JP1/IM configuration in a cluster operation system
(2) File organization on the shared disk
(3) Services and processes of JP1/IM - Manager
(4) Communication method
(5) Setting common definition information

(1) Overview of a JP1/IM configuration in a cluster operation system

Table 7‒3: JP1/IM configuration in a cluster system
Product name	JP1/IM configuration in a cluster system
JP1/IM - View	Use the logical IP address to connect from JP1/IM - View to JP1/IM - Manager. Run JP1/IM - View itself in the physical host environment.
JP1/IM - Manager	JP1/IM - Manager can be run in the logical host environment. JP1/IM - Manager supports failover if it is registered in the cluster software. To register JP1/IM - Manager into the cluster software, you need logical IP addresses and a shared disk resource. Definition information is stored on the shared disk and is inherited during failover. Multiple logical hosts can be executed by a single server. Therefore, JP1/IM - Manager can be run in a cluster system with an active-standby configuration as well as an active-active configuration. Execute JP1/IM - Manager on the same logical host as for the required JP1/Base.

To Page Top

(2) File organization on the shared disk

The files described below are created on the shared disk when you set up JP1/IM - Manager in a logical host environment. These files are required in order to execute JP1/IM - Manager on a logical host.

Table 7‒4: File organization on the shared disk (Windows)
Function	Type of shared file	Folder name
Central Console	Definition file	`shared-folder\jp1cons\conf\`
	Log file	`shared-folder\jp1cons\log\`
	Temporary file	`shared-folder\jp1cons\tmp\`
	History file^#	`shared-folder\jp1cons\operation\`
Central Scope	Definition file	`shared-folder\jp1scope\conf\`
	Log file	`shared-folder\jp1scope\log\`
	Temporary file	`shared-folder\jp1scope\tmp\`
	Database	`shared-folder\jp1scope\database\`
IM Configuration Management	Definition file	`shared-folder\JP1IMM\conf\imcf\`
	Log file	`shared-folder\JP1IMM\log\imcf\`
	Temporary file	`shared-folder\JP1IMM\tmp\`
	IM configuration data and profile data	`shared-folder\JP1IMM\data\imcf\`
IM database	Database	`user-specified-folder-on-shared-disk\imdb`

#: Event Generation Service processing, exclusion processing caused by common exclusion-conditions, and update processing of common exclusion-conditions definition are output as the history.

To Page Top

(3) Services and processes of JP1/IM - Manager

JP1/IM - Manager in a cluster operation system executes the services or processes of the logical host.

If you set up JP1/IM - Manager in the logical host environment, the services listed below are registered in Windows. To use these services, you must register them in the cluster software.

Table 7‒5: Services of JP1/IM - Manager (Windows)
Displayed name	Service name
`JP1/IM2-Manager_logical-host-name`	`JP1_Console_logical-host-name`
`JP1/IM2-Manager DB Server_logical-host-name`^#1	`HiRDBEmbeddedEdition_JM<n>`^#2
`JP1/IM2-Manager DB Cluster Service_logical-host-name`^#1	`HiRDBClusterService_JM<n>`^#2

#1: Registered when IM databases are used.
#2: <n> is a number from 1 to 9, and is the value of LOGICALHOSTNUMBER in the cluster setup information file. For details, see Cluster setup information file (jimdbclustersetupinfo.conf) in Chapter 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.

The Displayed name column indicates the name that is displayed by choosing Control Panel, Administrative Tools, and then Services. To use net commands (net start and net stop) to control the services from the cluster software, specify these names in the net commands.

The names in the Service name column are used to register services into the cluster software. Specify these names as service names in WSFC (Windows Server^(R) Failover Cluster).

To Page Top

(4) Communication method

When you set up JP1/IM - Manager on the logical host, the communication method for JP1/IM - Manager is set to what is called the IP binding method. The IP binding method is applied to both logical and physical host environments.

The two types of communication methods are the IP binding method and the ANY binding method. These methods determine how the IP address used for communication is to be allocated (bound) by internal processing.

For details about the communication methods, see the descriptions of the JP1/Base communication methods in the JP1/Base User's Guide. JP1/IM - Manager uses the same communication methods as JP1/Base.

To Page Top

(5) Setting common definition information

When you set up JP1/IM - Manager on the logical host, settings for the logical host are set as common definition information.

The common definition information is managed by JP1/Base in the database that stores JP1 settings. The settings are stored in the format shown below on the local disk of each server.

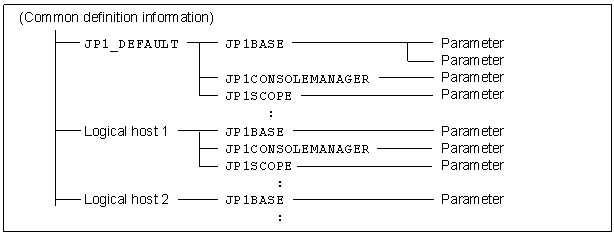

Figure 7‒3: Common definition information

The common definition information for the physical host (JP1_DEFAULT) is stored separately from the common definition information for the logical host. You use the jbssetcnf command to set the information for each physical and logical host, and you use the jbsgetcnf command to read the information.

The common definition information for the logical host must be the same for each server. When you perform setup or if you change the settings, copy the common definition information from the primary server where the settings are specified to the secondary server.

JP1/IM - Manager, JP1/Base, JP1/AJS, and JP1/Power Monitor (06-02 or later) use the common definition information to store the settings.
