6.9.1 Example of creating system-monitoring objects (JP1/AJS jobnet monitoring)

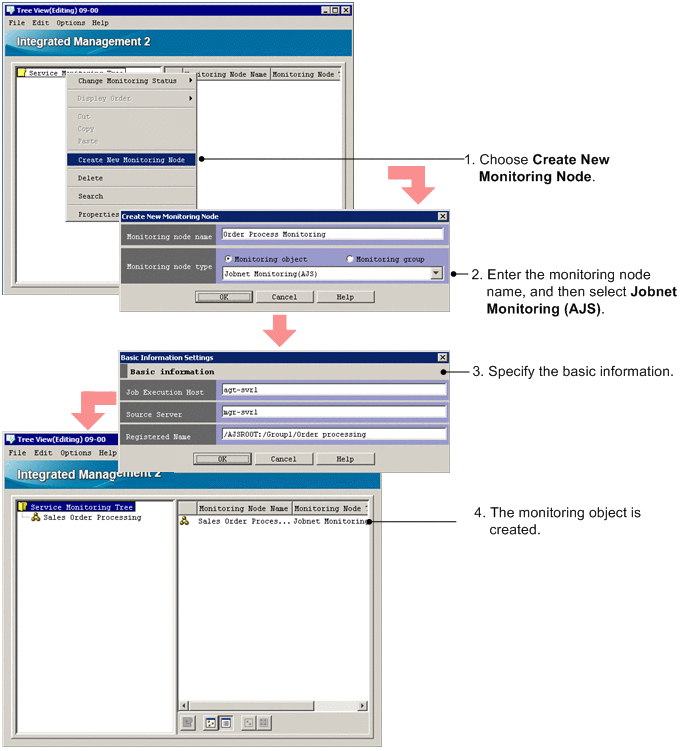

This subsection presents an example of creating a system-monitoring object that monitors the execution status of JP1/AJS jobnet AJSROOT:/Group1/Order_Processing.
|
|
![[Figure]](GRAPHICS/CS121900.GIF)
-
Open the Create New Monitoring Node window.
Use one of the following methods to open the window:
-
Select a monitoring group, and then from the right-click pop-up menu, choose Create New Monitoring Node.
-
Select a monitoring group, and then from the menu bar, choose Edit, then Create New Monitoring Node.
-
To open the window from the details area, right-click with no monitoring node selected, and from the displayed pop-up menu, choose Create New Monitoring Node.
If there are no monitoring nodes, use the menu bar or the pop-up menu that is displayed by right-clicking in the monitoring tree area.
-
-
Enter a name for the monitoring node, and then select Jobnet Monitoring (AJS).
Set the following items in the Create New Monitoring Node window:
-
Monitoring node name
Specify any name.
-
Monitoring node type
Select Jobnet Monitoring (AJS).
-
-
Specify the basic information for the monitoring node.
In the Basic Information Settings window, specify the following information.
Table 6‒5: Example of basic information for a monitoring node Monitoring node attribute name
Attribute value to be entered (example)
Description
Job execution host
agt-svr1
Host where the job is executed. Enter the name of the JP1/AJS agent that is to execute the job.
Event-issuing server
mgr-svr1
Host that issues JP1 events. In JP1/AJS, enter the name of the JP1/AJS manager.
Registration name
AJSROOT:/Group/Order_Processing
Enter a complete name in the format shown below. Specification of job group names is optional.
scheduler-service-name:/job-group-name-1/job-group-name-2/.../jobnet-name
-
The monitoring object is created.
The monitoring object that monitors the execution status of the JP1/AJS jobnet AJSROOT:/Group/Order_Processing is created.
