6.4.5 Applying a customized Visual Monitoring window to the manager

Once you have applied to the manager a Visual Monitoring window that was customized in the Visual Monitoring (Editing) window, you can use it for system operation monitoring. The following figure shows the procedure for applying a customized Visual Monitoring window to the manager.

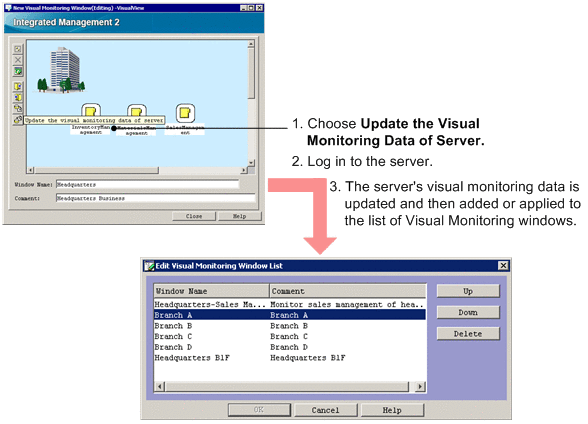

Figure 6‒14: Updating a server's visual monitoring data

To apply a customized Visual Monitoring window to the manager:

1. Choose Update the visual monitoring data of server.

   In the Visual Monitoring (Editing) window, on the toolbar, click .

   When a configuration dialog box appears, click the Yes button.

2. Log in to the server.

   The Login window for logging in to JP1/IM - Manager (Central Scope) is displayed.

   Enter the JP1 user name and password. The JP1 user must belong to the JP1_Console JP1 resource group and have JP1_Console_Admin permission.

   For the host to connect, enter the host name of JP1/IM - Manager.

3. The customized Visual Monitoring window is applied to the server.

   A dialog box is displayed while the processing is in progress. This dialog box closes when the processing is completed. When the Visual Monitoring window has been applied to the manager, the Visual Monitoring window is added or applied to the list of visual windows.

   To check the applied Visual Monitoring window, log in to JP1/IM - Manager (Central Scope), and then check the Visual Monitoring window.
