6.3.6 Applying a customized monitoring tree to the manager

Once you have applied to the manager a monitoring tree that was customized in the Monitoring Tree (Editing) window, you can use it for system operation monitoring. If monitoring range settings were enabled for the monitoring tree in the Monitoring Tree (Editing) window, those settings also take effect at the manager.

The following figure shows the procedure for applying a monitoring tree to the manager.

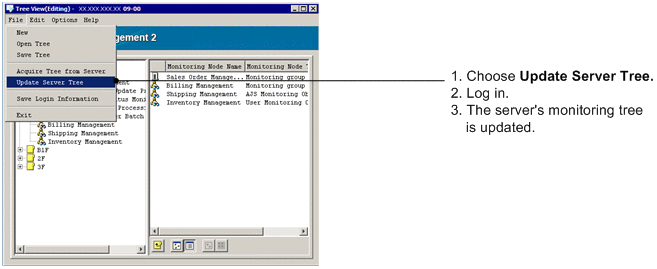

Figure 6‒9: Update Server Tree

[Figure]

  1. Choose Update Server Tree.

    In the Monitoring Tree (Editing) window, from the menu bar, choose File, and then Update Server Tree.

    A configuration dialog box appears. If you want to update, click the Yes button.

  2. Log in to the server.

    The Login window for logging in to JP1/IM - Manager (Central Scope) is displayed.

    Enter the JP1 user name and password. The JP1 user must belong to the JP1_Console JP1 resource group and have JP1_Console_Admin permission.

    For the host to connect, enter the host name of the JP1/IM - Manager whose monitoring tree is to be updated.

  3. The customized monitoring tree is applied to the server.

    A dialog box is displayed while the processing is in progress. This dialog box closes when the processing is completed.

    To check the applied monitoring tree, log in to JP1/IM - Manager (Central Scope), and then check the Monitoring Tree window.
