6.3.1 Opening the Monitoring Tree (Editing) window

You can edit the monitoring tree from the Monitoring Tree (Editing) window.

To edit the monitoring tree:

1. Open the Monitoring Tree (Editing) window.

   Use one of the following methods:

   • From the Start menu, choose All Programs, JP1_Integrated Management 2- View, then Edit Monitoring Tree.

   • Execute the jcoview command.

     jcoview -e

   • In the Monitoring Tree window during system monitoring, from the menu bar, choose Options, and then Edit Tree.

When the Monitoring Tree (Editing) window opens, nothing is displayed initially (there is no monitoring tree information).

Saving the login information

You can set the Save Login Information function in the Monitoring Tree (Editing) window. When this function is set, it stores the user name, password, and host to connect at the time of the first login processing when an operation requiring login is performed from the Monitoring Tree (Editing) window. The login operation is not required subsequently.

• From the Monitoring Tree (Editing) window, choose File, and then Save Login Information.

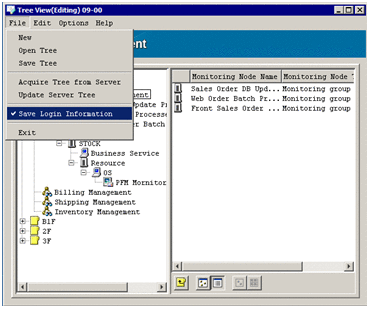

  Figure 6‒2: Save Login Information menu

The following table lists and describes the operations that require login.

Table 6‒1: List of operations that require login

Window name	Operation	Description
Monitoring Tree (Edit View)	Acquire Tree from Server is chosen from File	Acquires the existing monitoring tree settings from the manager.
	Update Server Tree is chosen from File	Applies the edited contents of the monitoring tree to the manager.
	Auto-generate Tree is chosen from Options	Generates a monitoring tree automatically.
	Acquire Latest Definition is chosen from Options	Acquires the most recent common condition definition from the manager.
	Edit Visual Monitoring Window List is chosen from Edit	Displays the Edit Visual Monitoring Window List window.
Visual Monitoring (Editing)	The Acquire Visual Monitoring Data from Server button is clicked	Loads visual monitoring data from the manager.
	The Update the Visual Monitoring Data of Server button is clicked	Applies the edited visual monitoring data to the manager.

The Save Login Information settings are saved when the Monitoring Tree (Editing) window closes. The settings take effect the next time the Monitoring Tree (Editing) window is opened.
