2.1 Installation and setup procedures (for UNIX)

This section describes the procedure from the beginning of installation to the end of setup for a manager, an agent, and a host to be monitored remotely. For details about the uninstallation procedure, see 2.19.1 Uninstallation procedure (for UNIX).

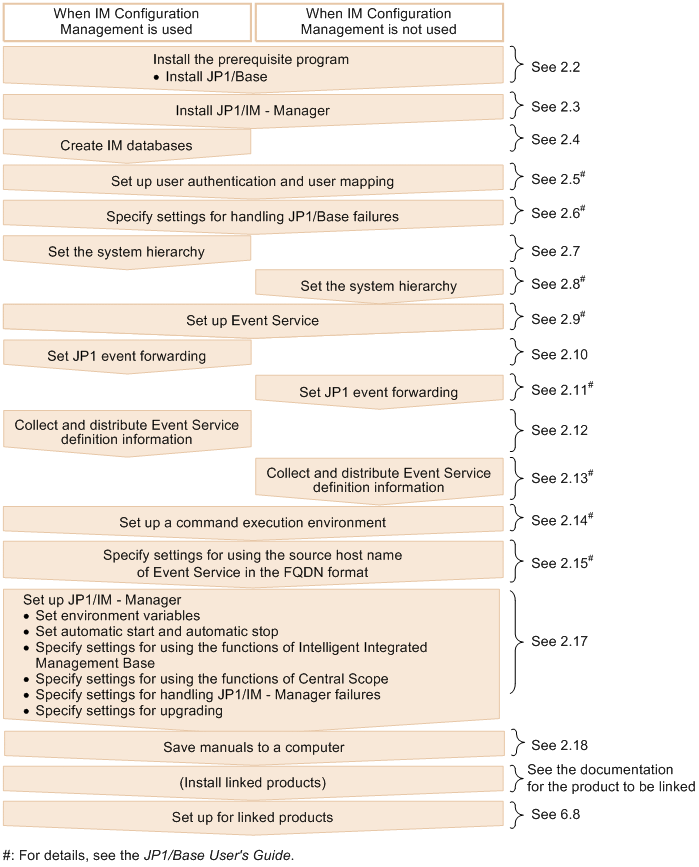

Figure 2‒1: Installation and setup procedure (manager)

[Figure]

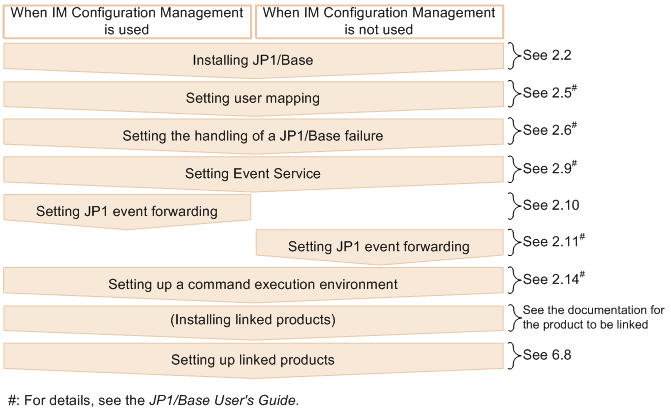

Figure 2‒2: Installation and setup procedure (agent)

[Figure]

For details about the settings for monitoring logs on hosts that will be monitored remotely, see 2.16 Specifying settings for monitoring logs on remotely monitored hosts (for UNIX).

For details about the settings for using the communication encryption function that encrypts communication data, see 9.4 Configuring encrypted communication.
