13.3.6 Configuration for monitoring the status of a Cosminexus system environment

You can monitor the status of a Cosminexus system environment (an execution and management environment for a Web system) by linking JP1/IM with Cosminexus. This streamlines the process of error investigation by allowing you to open the Cosminexus windows from JP1/IM - View, in the same manner as with other linked products.

An example system configuration is shown below.

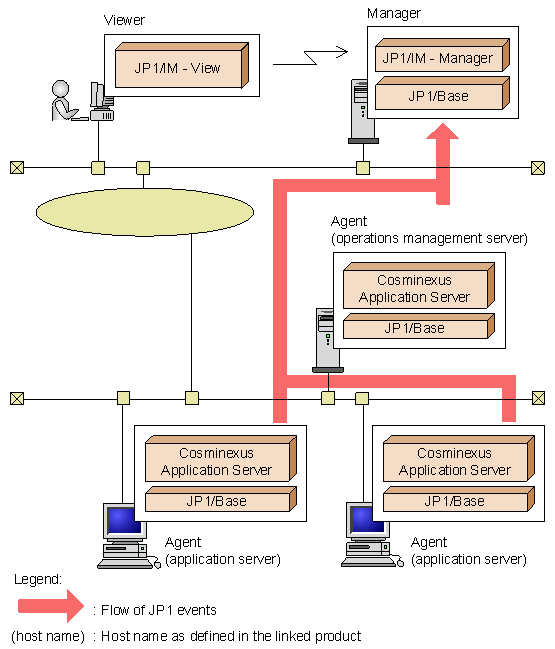

Figure 13‒7: Example of linkage with Cosminexus

The following products are required on each host:

Manager

• JP1/IM - Manager

  Runs the Central Console and Central Scope. The Central Scope is required to monitor the system by associating jobs and JP1 events. It is not required to monitor job execution simply by monitoring JP1 events.

• JP1/Base

Agent (Cosminexus operations management server host)

• Cosminexus Application Server

  Required to run and manage the applications on the application servers.

  This host requires the Cosminexus Management Server and its prerequisite processes, provided with the application server.

• JP1/Base

Agents (application server hosts)

• Cosminexus Application Server

  On an application server host, install Cosminexus Application Server and use the configuration software according to your needs. Operation and management of Cosminexus Application Server is performed by Cosminexus Manager (Cosminexus Management Server) on the operations management server.

• JP1/Base

Viewer

• JP1/IM - View

  Note

  Cosminexus is an application server that allows you to consolidate information from distributed systems accessed via a network (Internet or intranet). Cosminexus can be used to manage environments such as the execution environment of a Web system.

  Errors that occur at startup or shutdown or during execution of a logical server managed by Cosminexus (J2EE servers, Web servers, naming services, CTM and so on) are converted into JP1 events and initially registered with JP1/Base on the Cosminexus operations management server host. These events are later forwarded to the JP1/IM - Manager host by the JP1 event forwarding function of JP1/Base. In this manner, JP1/IM can monitor JP1 events that occur on the Cosminexus operations management server host by monitoring the associated JP1 events registered on the JP1/IM - Manager host.
