7.8.2 Exporting IM Configuration Management information
Using IM Configuration Management, you can export information held in the IM Configuration Management database to multiple files.
To export management information, execute the jcfexport command on the manager running IM Configuration Management.

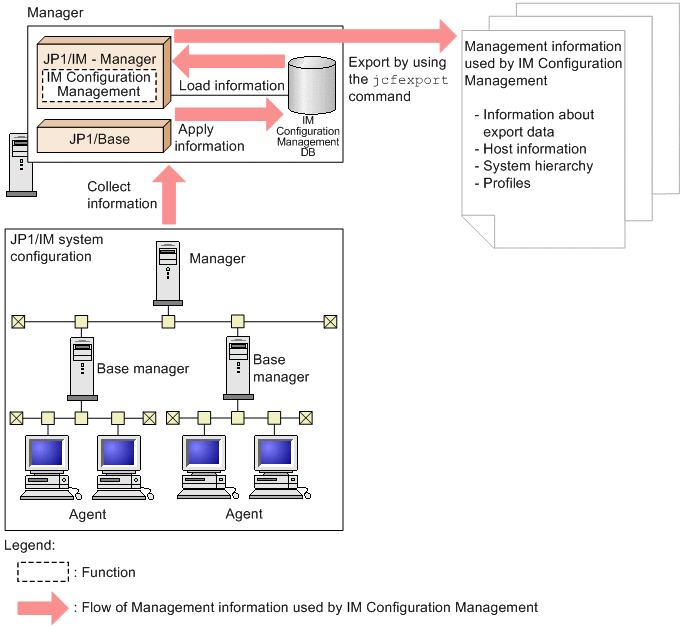

The figure below shows the flow of processing when exporting management information with IM Configuration Management.
|
|
![[Figure]](GRAPHICS/CF072700.GIF)
Before executing the command, make sure you check the information to be exported in case the IM Configuration Management database contains management information that has not been applied in the actual system.
You can specify options in the jcfexport command to select the types of management information to export. For the command syntax, see jcfexport in Chapter 1. Commands in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.
The following table describes the range of information you can specify for export.
|
Type of management information (for export) |
Export |
|||||
|---|---|---|---|---|---|---|
|
Host information (-m option) |
Remote authentication information (-r option) |
System hierarchy (-c option) |
Profiles (all hosts) (-a option) |
Business group information (-g option) |
||
|
Information about exported data |
Y |
Y |
Y |
Y |
Y |
|
|
Host information |
Y |
Y |
Y |
Y |
Y |
|
|
Remote authentication information |
N |
Y |
N |
Y |
N |
|
|
System hierarchy |
N |
N |
Y |
Y |
N |
|
|
Profile information# |
Event forwarding setting file |
N |
N |
N |
Y |
N |
|
Log-file trap action definition file |
N |
N |
N |
Y |
N |
|
|
Log-file trap startup definition file |
N |
N |
N |
Y |
N |
|
|
Action definition file for event log trapping |
N |
N |
N |
Y |
N |
|
|
Local action execution definition file |
N |
N |
N |
Y |
N |
|
|
Business group information |
N |
N |
N |
Y |
Y |
|
|
Monitoring group information |
N |
N |
N |
Y |
Y |
|
- Legend:
-
Y: Can be specified.
N: Cannot be specified.
- #
-
If the host does not collect profile settings files, there is no data to be exported (no directory is created).
The following table describes the output formats of exported management information.
|
Management information |
Output format |
|---|---|
|
Information about exported data |
Information about exported data is output to one file. |
|
Host information |
Information about managed hosts is output to two files. |
|
System hierarchy |
Information about the system hierarchy is output to one file. |
|
Profiles |
|
|
Business group information |
Business group information is output to two files. |
|
Monitoring group information |
Monitoring group information is output to two files. |
Information cannot be exported while import is in progress.
