7.5.1 Types of profiles that can be managed

Using IM Configuration Management, you can manage the profiles set for JP1/Base on the agent hosts and the profiles on the remotely monitored hosts.

You can manage the following profiles:

Valid configuration information

The setting information currently enabled in JP1/Base of the agent hosts and on the remotely managed hosts (information in the setting files loaded when the service is started). To manage this information, the JP1/Base on the target host must be version 9 or later.
Configuration file contents

The information in the definition file that is set in JP1/Base of the agent hosts and on the remotely monitored hosts. This information will differ from the valid configuration information if you made any changes to the configuration file after startup of the JP1/Base service but did not apply the edited file contents.

Using IM Configuration Management, you can manage profiles in JP1/Base version 7 or later.

Profile management can be used for the following purposes:

To check the status of the hosts on a routine basis or in the event of an error
To change a profile during a system upgrade or maintenance
To apply the contents of a profile to the profiles on other hosts

Organization of this subsection

(1) Types of profiles on agent hosts
(2) Types of profiles on remotely monitored hosts

(1) Types of profiles on agent hosts

The following table lists and describes the profile types on the agent hosts managed by IM Configuration Management.

Table 7‒29: Profile types on the agent hosts managed by IM Configuration Management
Profile type	Description
Event Forwarding	Profile about the functionality for forwarding JP1 events to a higher-level host in accordance with the system hierarchy.
Log File Trapping	Profile about the functionality for converting information output to a log file by an application program into JP1 events. Configuration files cannot have identical file names. A different file name must be assigned to the configuration file for each process, even when the files are stored in different directories. If JP1/IM - Manager is running on a Windows host, the setting file name used on an agent host is not case sensitive.
Event Log Trapping	Profile about the functionality for converting Windows events into JP1 events.
Local Action^#1	Profile about actions executed on an agent without going through a manager.
Authentication Server^#1	Profile about the server for centrally managing the users of a system configured in JP1/IM or JP1/AJS.
JP1 User-Permissions Level^{#1, #2}	Profile about the permission levels of JP1 users (users of a JP1 system such as JP1/IM or JP1/AJS).
Registered JP1 Users^{#1, #2}	Profile about the list of JP1 users.
OS User Mapping^{#1, #2}	Profile about the mapping between OS users who have permission to execute jobs and commands and JP1 users.

#1

Only information in JP1/Base version 9 or later can be managed.

#2

If the local host is used as the authentication server, information can be displayed only when the service of the authentication server is active.

If the local host is used as the authentication server, the display area appears grayed when the service of the authentication server is stopped.

The profiles in JP1/Base that can be managed by IM Configuration Management are the contents of the configuration files stored in each host's conf directory. Configuration files located in other directories, such as those for log file trapping, cannot be managed by IM Configuration Management. If you want to include such files in the profile management functionality, you must move them to the conf directory.

IM Configuration Management manages JP1/Base event log traps and log file traps on a physical host basis, not on a logical host basis. To display or edit profiles about event log traps or log file traps in a logical host, you must do so on a physical host basis, identifying the physical host associated with the logical host.

All valid configuration information can be displayed, however, even for services that start with a configuration file located in a directory other than the conf directory. From the displayed information you can find out whether a service's configuration file is located in the conf directory.

The following figure shows the flow of operations necessary to manage profiles or log file traps in IM Configuration Management.

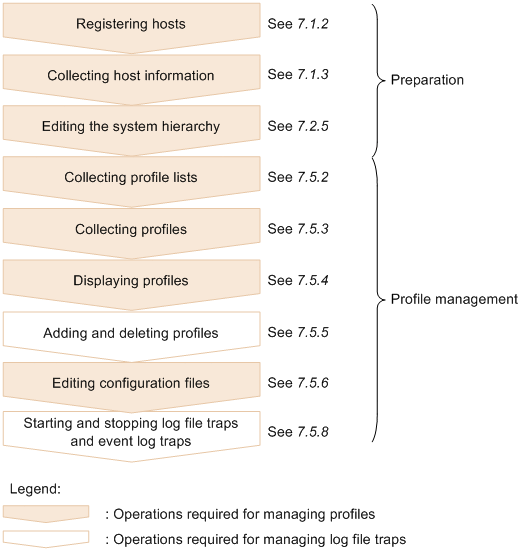

Figure 7‒30: Flow of operations for managing profiles with IM Configuration Management

If IP addresses are registered as host names when the system hierarchy (IM configuration) is applied, profiles cannot be managed in IM Configuration Management. Performing any of the operations below will display the KNAN22412-E message. This message appears when you perform any of the following operations on a host defined by its IP address:

Open the Display/Edit Profiles window.
Collect profiles as a batch operation in the IM Configuration Management window.

You cannot collect profiles from hosts defined by their IP addresses, but processing succeeds for the other hosts.
Apply profiles as a batch operation in the IM Configuration Management window.

You cannot apply profiles to hosts defined by their IP addresses, but processing succeeds for the other hosts.

To Page Top

(2) Types of profiles on remotely monitored hosts

The following table lists and describes the profile types on the remotely monitored hosts managed by IM Configuration Management.

Table 7‒30: Profile types on the remotely monitored hosts managed by IM Configuration Management
Profile type	Description
Remote-monitoring log file trap information	Profiles related to converting the information output to the log files of application programs to JP1 events
Remote-monitoring event log trap information	Profiles related to converting Windows events to JP1 events
