7.2.3 Displaying the system hierarchy

Using IM Configuration Management, you can display the configuration definition information held in the IM Configuration Management database. The information appears on the IM Configuration page of the IM Configuration Management window.

The hosts defined in agent configuration and the hosts defined in a remote monitoring configuration by the integrated manager or base managers are displayed in the tree display area on the IM Configuration page. This is where you can check the system hierarchy. If the acquired configuration definition information (agent configuration) does not match with the configuration definition information held in the IM Configuration Management database, the system hierarchy appears grayed in the tree display area. In this case, perform the following to make the information of the different configuration definitions the same:

• In the IM Configuration Management window, from the Operation menu, select Collect IM Configuration to acquire the configuration definition information.

• In the Edit Agent Configuration window, from the Operation menu, select Apply Agent Configuration to apply the agent configuration.

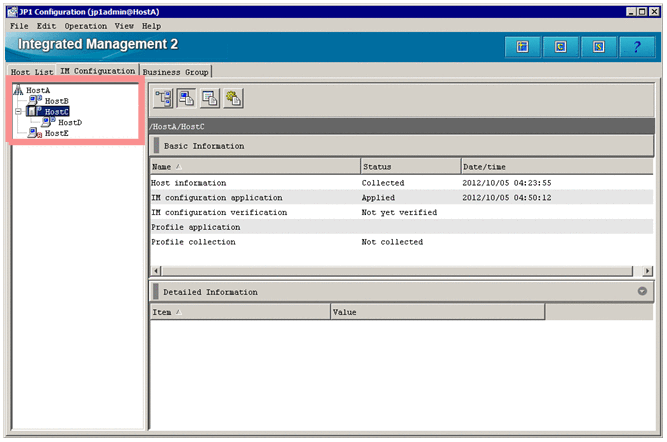

Figure 7‒9: Display example of the contents of the configuration definition information (IM Configuration page of the IM Configuration Management window)

For details about the displayed information, see 5.1.2 IM Configuration page in the manual JP1/Integrated Management 2 - Manager GUI Reference.

The following table describes the information displayed for individual components of the system hierarchy.

Table 7‒12: Components of the system hierarchy and displayed information

Component	Information about lower-level hosts	Basic information	Product information	Service operating information
Integrated manager	Y	Δ	Δ	Δ
Base manager	Y	Δ	Δ	Δ
Relay manager	Y	Δ	Δ	Δ
Agent under a base manager	N	N	N	N
Agent under the integrated manager or a relay manager	N	Y	Δ	Δ
Remotely monitored host under a base manager	N	N	N	N
Remotely monitored host under the integrated manager	N	Y	Δ#	Δ#

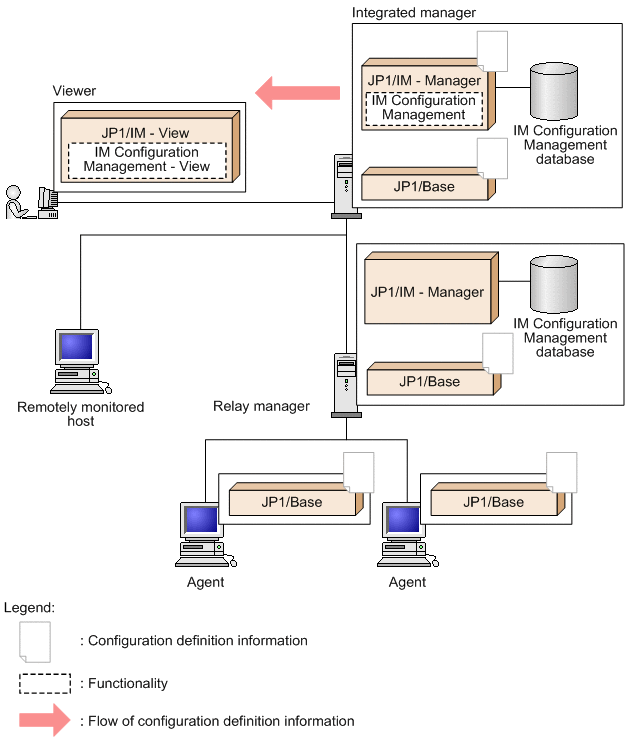

The figure below shows the flow of processing when displaying the system hierarchy with IM Configuration Management.

Figure 7‒10: Displaying the system hierarchy with IM Configuration Management
