5.1 Overview of Central Scope functions

The Central Scope supports objective-oriented system monitoring based on tree views, map views, and action guidance. You can easily build a Central Scope environment using the auto-generation and editing functions of the Monitoring Tree window.

Important

The Central Scope is disabled (does not run) by default. To use this functionality, you must create a monitoring object database with the jcsdbsetup command, and then enable the Central Scope in the jcoimdef command options.

For details, see the following subsection in the JP1/Integrated Management 2 - Manager Configuration Guide:

  • For Windows:

    1.18.2 Specifying settings for using the functions of Central Scope (for Windows)

  • For UNIX:

    2.17.4 Specifying settings for using the functions of Central Scope (for UNIX)

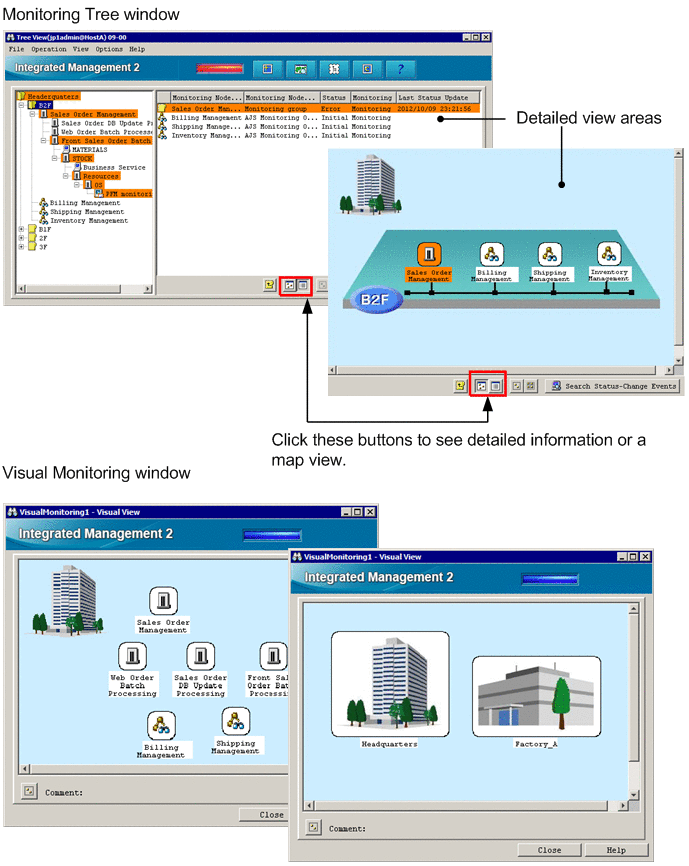

Figure 5‒1: Display examples of the Monitoring Tree window and Visual Monitoring window

[Figure]

The functions of the Central Scope are summarized as follows.

You can also navigate from the Central Scope's Monitoring Tree window to the Event Console window in the Central Console.
