4.20.1 Mechanism of mail notification function

This subsection describes the mechanism of the email notification function.

If JP1/TELstaff is linked for email notification purposes, when JP1/IM - Manager receives an event, JP1/TELstaff's teldial command is executed as an automated action and the email is sent to the mail server of the system administrator via JP1/TELstaff, as shown the figure below. Use JP1/TELstaff if you also use a trigger phone or a signal light.

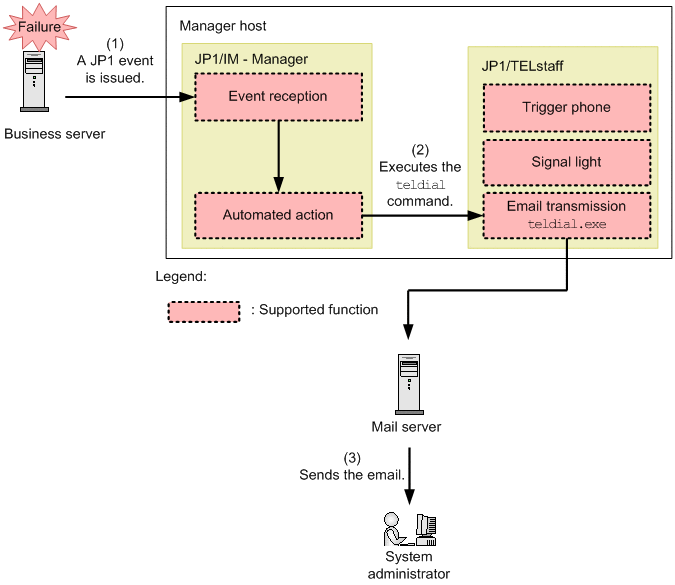

Figure 4‒111: Sending notification email by using JP1/TELstaff

When the jimmail command of JP1/IM - Manager is used to send a notification email, the email is sent from JP1/IM - Manager to the mail server of the system administrator without JP1/TELstaff having to be installed.

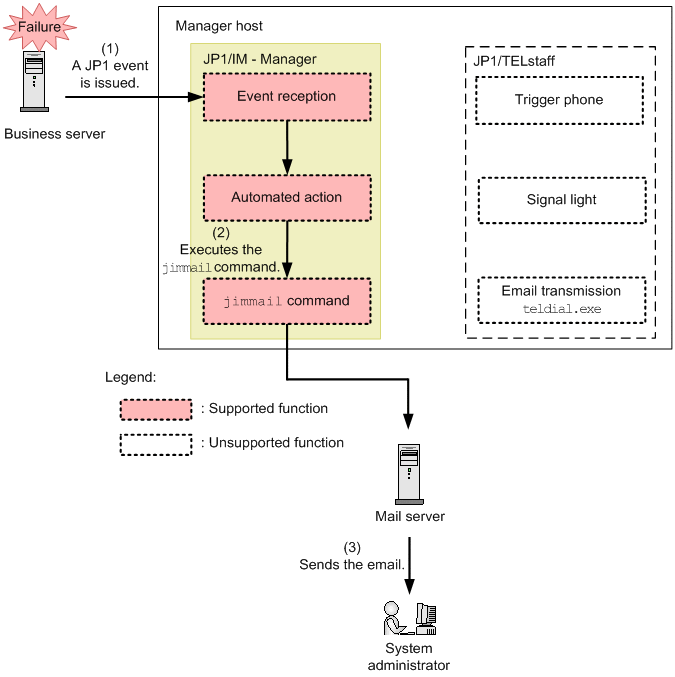

Figure 4‒112: Sending notification email by using the jimmail command of JP1/IM - Manager
