4.17 Range of events to be collected at login

A function is provided to set the range of events to be collected at login. This function enables you to specify a point of time from which JP1/IM - View starts acquiring old events from JP1/IM - Manager when you log in to JP1/IM - Manager.

The following table compares when the function for setting the range of events to be collected at login is used and when the function is not used.

Table 4‒27: Comparison between when the function for setting the range of events to be collected at login is used and when the function is not used.

Item	When the function is used	When the function is not used
Severe Events page at login	The severe events in the target period are displayed. This period begins a set amount of time before the login time on the host where the Central Console is operating.	Events in the range from the most recent to event 2,000 in the event buffer are displayed. The number of events to be displayed depends on the count in the event buffer and the count in the global buffer.
Monitor Events page at login	The events ranging from the most recent event to a previous event that occurred at specified date and time are displayed.
Range of events to be collected at login	The events to be displayed are inherited during re-login because the display start point matches the display status at the time of logout.	The events that are not inherited are displayed because the display start point does not match the display status at the time of logout.

As described above, the Monitor Events and Severe Events pages are used in different ways, and you can specify the range of events to be collected at login differently for individual pages. The range of events to be collected at login can be specified by time in number of days.

At login, the Central Console calculates the point of time to begin event acquisition based on the number of days or time set in the system and the login time on the host where the Central Console is operating. Then, the Central Console acquires the events that have occurred since the calculated point of time up to the most recent event from the integrated monitoring database.

When you use this functionality, the integrated monitoring database must be enabled.

When the range of events to be collected at login is set, you can specify settings, on the Severe Events page, to exclude already processed severe events from event collection at login from the integrated monitoring database. This function is called the exclusion of processed events. If, before a severe event is processed, 2001 or more processed severe events are collected during system operation, said severe event cannot be displayed immediately at login. The exclusion of processed events enables you to immediately display most recent events other than processed events at login. Set the exclusion of processed events in the System Environment Settings window. For details, see 3.11 System Environment Settings window in the manual JP1/Integrated Management 2 - Manager GUI Reference.

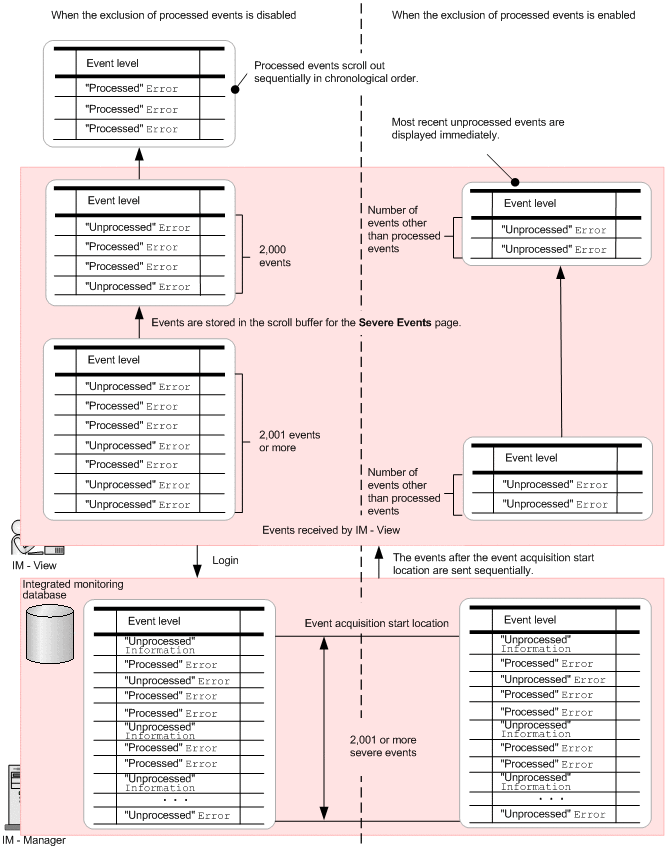

Figure 4‒98: Exclusion of processed events

Important

The number of events that have occurred during the period from the specified point of time to begin collection to the most recent time might exceed the maximum number of events that can be displayed by the viewer. If this occurs, excessive events scroll out. Therefore, the system administrator must specify the point of time to begin collection so that the number of events collected at login does not exceed the maximum number of events that can be displayed by the viewer. If a large number of events have been issued in the range of events to be collected at login, it might take time to display the most recent events at login. If that occurs, temporarily change the range of events to be collected at login, and restore the range when the issued repeated events grow out of the monitoring range. Event collection cannot be canceled functionally. In such cases, you must log out, change the range setting, and then log in again. Besides, if multiple users login at the same time, it might take additional time to display and update events. If this occurs, wait a while, and then re-execute processing.

• Events to be collected

  • Like the events stored in the event buffer, the events to be collected are all the events except the dummy events, which are not stored in the integrated monitoring database.

  • The events to be collected for the Severe Events page are as shown in the following table according to the setting of the exclusion of processed events.

    Table 4‒28: Types of events to be collected according to the setting of the exclusion of processed events

    Event processing status	Setting of the exclusion of processed events
    	Enabled	Disabled
    Processed	N	Y
    Processing	Y	Y
    Held	Y	Y
    Unprocessed	Y	Y

    Legend:

    Y: The event is to be collected.

    N: The event is not to be collected.

• Applicable filters

  The filters applicable to the events that are collected from the integrated monitoring database at login are the same as those applicable to the events that are acquired from the event console service. Also, the events that are displayed are the same as those acquired from the event console service.

  For details about filters, see 4.2 Filtering of JP1 events.

• Number of events that are sent to JP1/IM - View at a time

  The number of events that are sent to JP1/IM - View at a time is the number of events specified in the Num. of events to acquire at update field of the Preferences window.

• Determination of event acquisition start location

  The following gives examples of calculating the range of event collection:

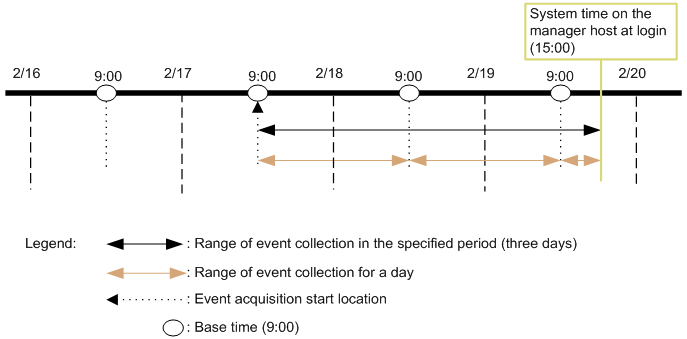

  Figure 4‒99: When the login time is later than the base time and the range of event collection is set to 3 days

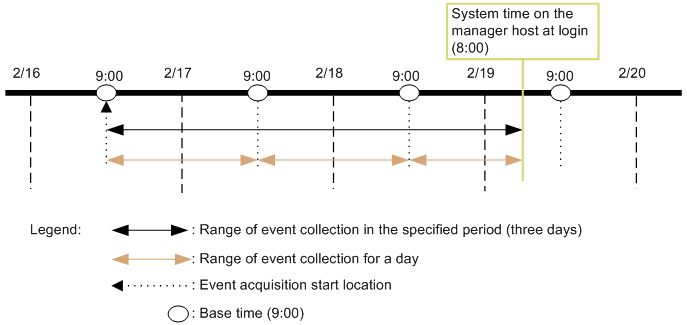

  Figure 4‒100: When the login time is earlier than the base time and the range of event collection is set to 3 days

Even when the function to set the range of events to be collected at login is used, the existing event buffer remains the same.

If the event buffer retains uncollected events when the display of collected events is updated after events have been collected from the integrated monitoring database, the uncollected events are acquired from the event buffer.

If the event buffer does not retain any uncollected event, a dummy event with event ID 3F01 is displayed in JP1/IM - View as always. This functionality can be set separately for the Monitor Events and Severe Events pages. Therefore, at login, events might be acquired from the event buffer for only one of these pages. If events can be displayed on only one of the pages, a dummy event with event ID 3F02 is displayed on the page that cannot display any events. When the dummy event with event ID 3F02 is displayed on the Severe Events page, the event is forcibly treated as a severe event. The following figure shows the flow when updating the display of collected events.

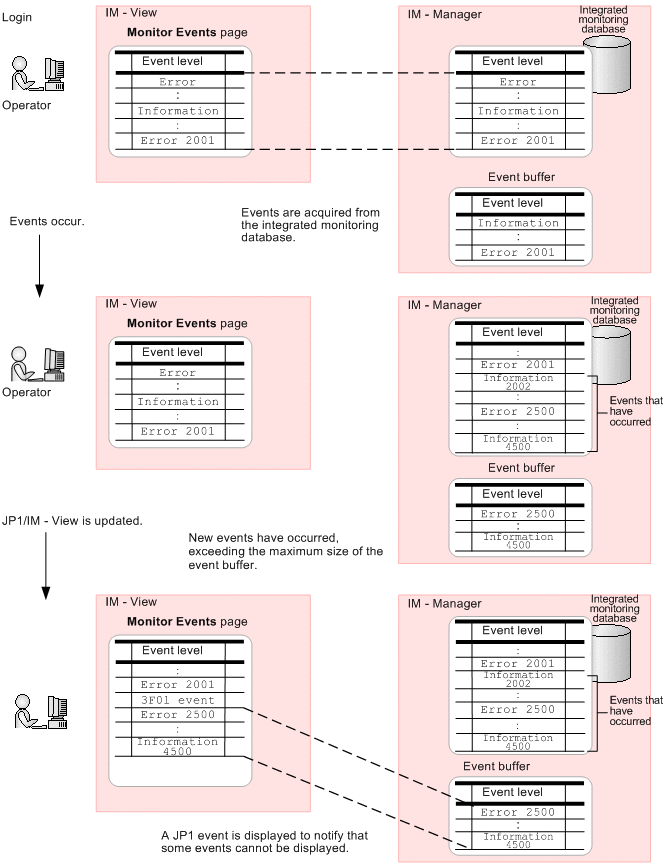

Figure 4‒101: Updating the display of collected events when the event buffer has overflowed

If you change the setting of the range of events to be collected at login, the new setting will be applied at the next login.

For details about the range of events to be collected at login, see 5.1.1 Displaying events by specifying the event acquisition range at login in the JP1/Integrated Management 2 - Manager Configuration Guide.
