4.14.4 Flow of event information

Using the JP1 event issuing function provided by JP1/Base, you can execute user-defined events that have user-defined event attributes (program-specific extended attributes) directly from a user application.

In JP1/IM, you can create a definition file and display these user-defined event attributes in the Event Details window.

The following figure provides an overview of the flow of processing from issuing a user-defined event to displaying its user-defined event attributes.

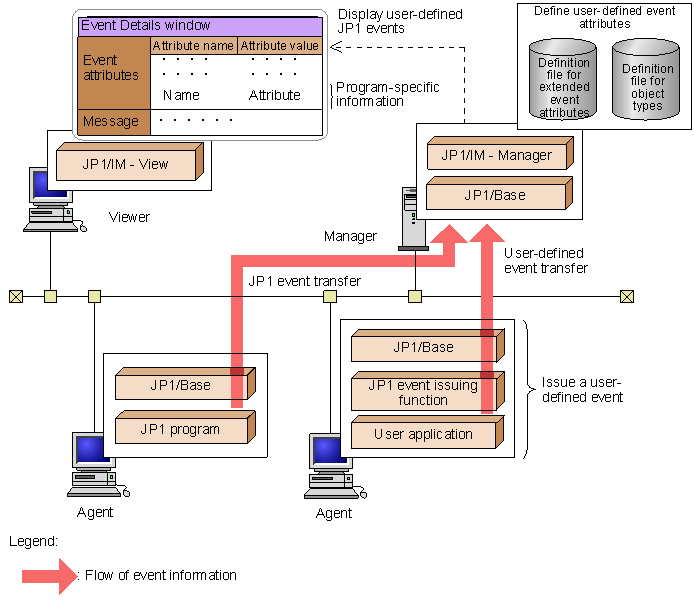

Figure 4‒92: Flow of processing from issuing a user-defined event to displaying its attributes
