4.13.2 Specifying program-specific extended attributes in event conditions

If you set a definition file for extended event attributes (extended file), you can specify item names (such as system name and server's role) instead of attribute names (such as E.SYSTEM and E.ROLE) as program-specific extended attributes in event conditions, such as view filters and event receiver filters. This functionality is called the program-specific extended attribute specification function.

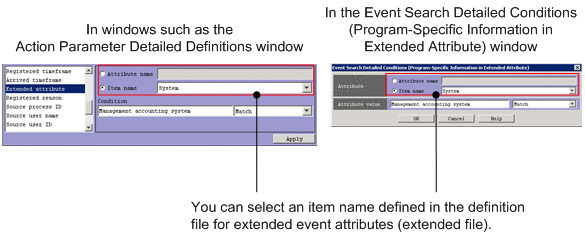

Figure 4‒91: Program-specific extended attributes that are displayed in the windows for specifying event conditions

You can specify item names as program-specific extended attributes in the following functions (windows):

• Action Parameter Detailed Definitions window^#

• Event-Information Mapping Detailed Definitions window

• Severe Event Definitions window

• Event Acquisition Settings window

• Common Exclusion-Conditions Settings window

• Common Exclusion-Condition Settings (Extended) window

• Settings for View Filter window

• Detailed Settings for Event Receiver Filter window

• Event Search Conditions window

• Severity Change Definition Settings window (Add Severity Change Definition Settings window)

• Repeated Event Condition Settings window

• Display Message Change Definition Settings window (Add Display Message Change Definition Settings window)

#: The Action Parameter Detailed Definitions (for compatibility) window is excluded.
