4.6.3 Flow of processing of event searching

The flow of processing when searching for events differs according to the database you specify.

The following describes the flow of processing when searching the event database and when searching the integrated monitoring database.

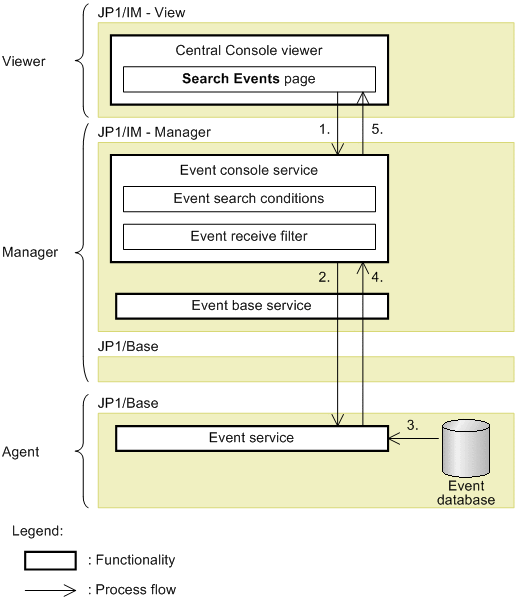

Figure 4‒77: Flow of processing of event searching (event database specified)

The flow of processing when searching the event database is described below, following the numbers in the figure:

On the Search Events page of the Event Console window, specify conditions about the host to search and the JP1 events to retrieve, and then execute the search.
On receiving the search request from JP1/IM - View, the event console service of JP1/IM - Manager issues a search request to the event service of JP1/Base on the target host.
The event service of JP1/Base acquires JP1 events matching the search conditions from the event database.
The event service of JP1/Base sends back information about the JP1 events matching the search conditions to the event console service of JP1/IM - Manager.
The event console service of JP1/IM - Manager sends the received information back to JP1/IM - View, and the information is displayed on the Search Events page of the Event Console window.

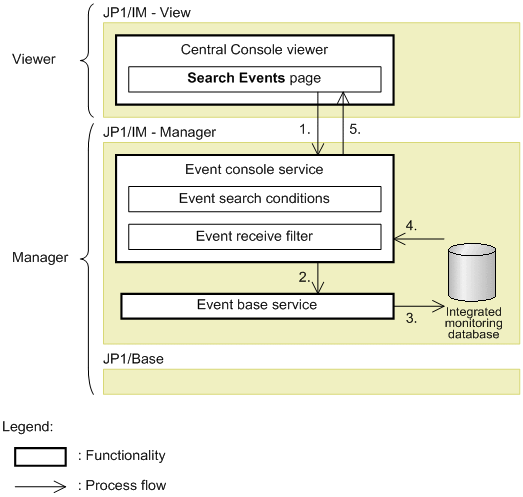

Figure 4‒78: Flow of processing event searching (integrated monitoring database specified)

The flow of processing when searching the integrated monitoring database is described below, following the numbers in the figure:

On the Search Events page of the Event Console window, specify conditions about the host to search and the JP1 events to retrieve, and then execute the search.
On receiving the search request from JP1/IM - View, the event console service of JP1/IM - Manager issues a search request to the event base service of JP1/IM - Manager on the target host.
The event base service of JP1/IM - Manager acquires JP1 events in memory and saves them to the integrated monitoring database.
The event console service of JP1/IM - Manager acquires JP1 events matching the search conditions from the integrated monitoring database.
The event console service of JP1/IM - Manager sends the received information back to JP1/IM - View, and the information is displayed on the Search Events page of the Event Console window.
