4.1.2 Flow of processing for JP1 event monitoring

The following describes how JP1/IM and JP1/Base are inter-linked in event monitoring. This example shows the flow of processing where a JP1 event generated in an agent is displayed on a window on the viewer.

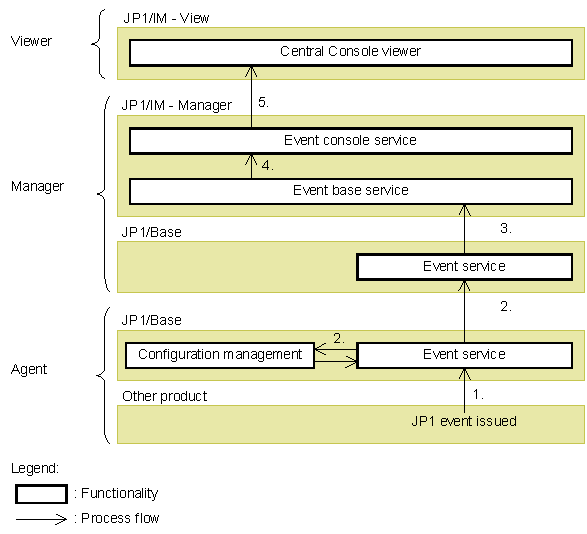

Figure 4‒3: Flow of processing for JP1 event monitoring

The flow of processing is described below, following the numbers in the figure:

1. The agent issues a JP1 event, which is registered with its event service.

2. The JP1 event registered with the event service is forwarded to the destination defined by the forwarding setting file of JP1/Base.

3. Information about the registered JP1 event is acquired by the event base service.

4. The event console service acquires the JP1 event information from the event base service.

5. The JP1 event acquired by the event console service is monitored from the viewer.

For details about the event service, see 8.4.2 Managing JP1 events using JP1/Base. For details about configuration management, see 8.4.3 Managing the system hierarchy. For details about the event base service, see 4.1.3 Internal control of JP1 events by JP1/IM - Manager.
