3.1.1 Monitoring using the Intelligent Integrated Management Base

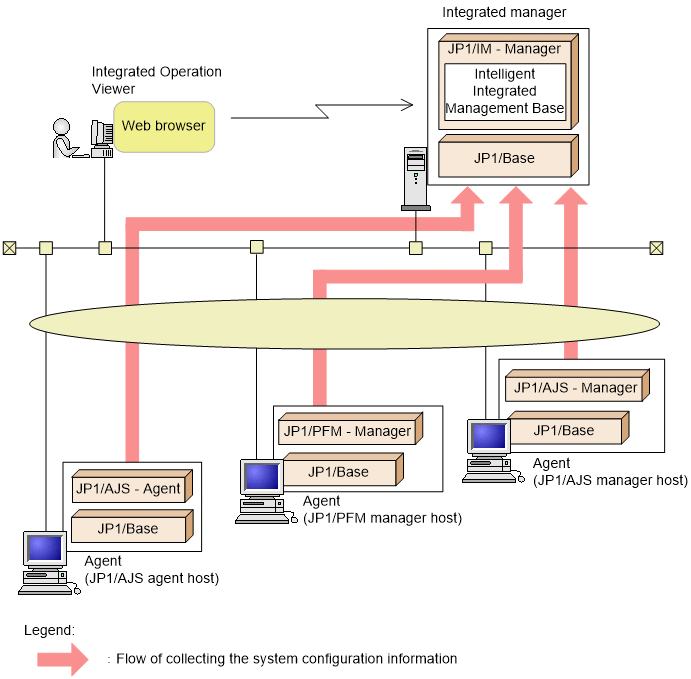

The Intelligent Integrated Management Base evaluates system configuration information and JP1 event data to manage system statues. The system statues are shown in the integrated operation viewer window.
|
|
![[Figure]](GRAPHICS/DD030200.GIF)
The integrated operation viewer is a Web browser that displays the operating statuses of systems and their details.
It allows the system administrator to determine how the systems are operating based on the color of each component. A component in red indicates that it is in Emergency/Alert/Critical condition and one in green means that it is in Normal/Resolved condition. A list of JP1 events that have occurred in the component can also be viewed together. When linked with JP1/AJS or JP1/PFM, the Intelligent Integrated Management Base displays both the state of components managed by linked products and the JP1 events related to the linked products in the same window. The displayed component colors and details about each component allow the system administrator to identify the state of the system by viewing just one window.
